172781 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

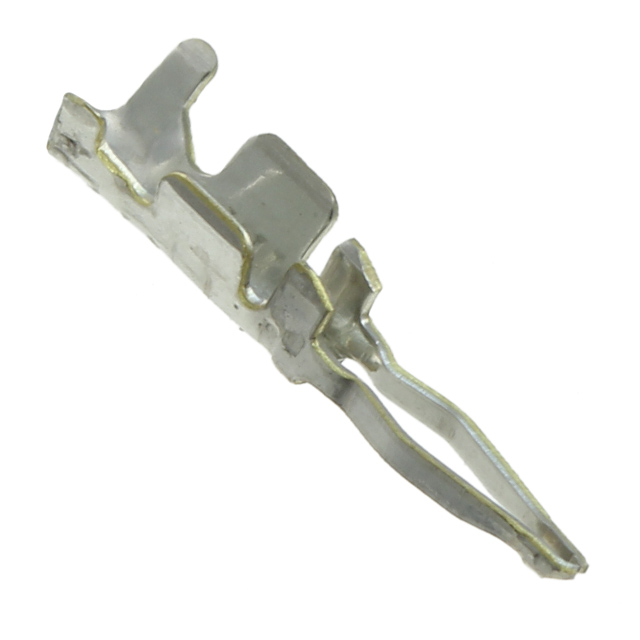

CONN TERM WTB 26-30AWG TIN
| Part | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Length - Overall [x] | Length - Overall [x] | Hole Diameter [Min] | Hole Diameter [Min] | Hole Diameter [Max] | Hole Diameter [Max] | Contact Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Wire to Board | 26 AWG | 30 AWG | 0.043 " | 1.4 mm | 1.1 mm | 0.055 in | 8.5 mm | 0.335 in | 1.19 mm | 0.047 " | 1.6 mm | 0.063 " | Tin | Brass |
