333-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 6POS 0.156
| Part | Material - Insulation | Termination Rows | Read Out | Contact Material | Mounting Type | Contact Finish | Color | Pitch | Pitch | Number of Positions | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Card Type | Termination | Gender | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Wire Wrap | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Solder Eyelet(s) | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Solder | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Solder | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Wire Wrap | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Wire Wrap | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever |
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Solder | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Solder | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Wire Wrap | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever | ||

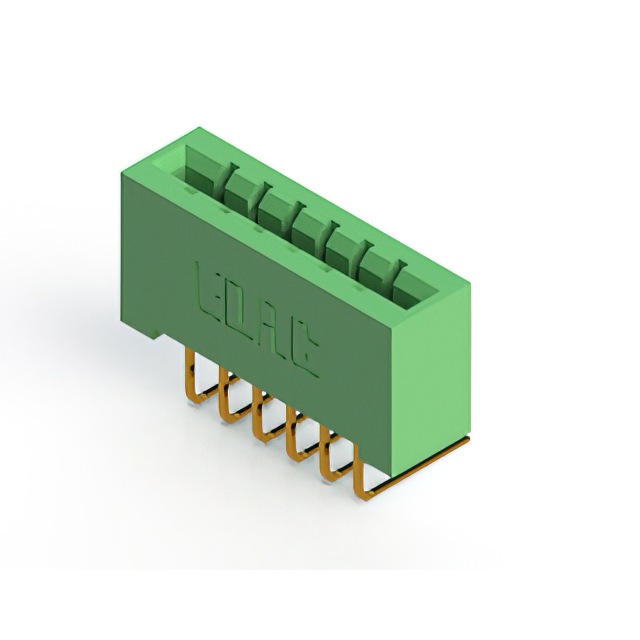

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Copper Alloy | Right Angle Through Hole | Gold | Green | 3.96 mm | 0.156 in | 6 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 6 | Non Specified - Single Edge | Wire Wrap | Female | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Cantilever |
