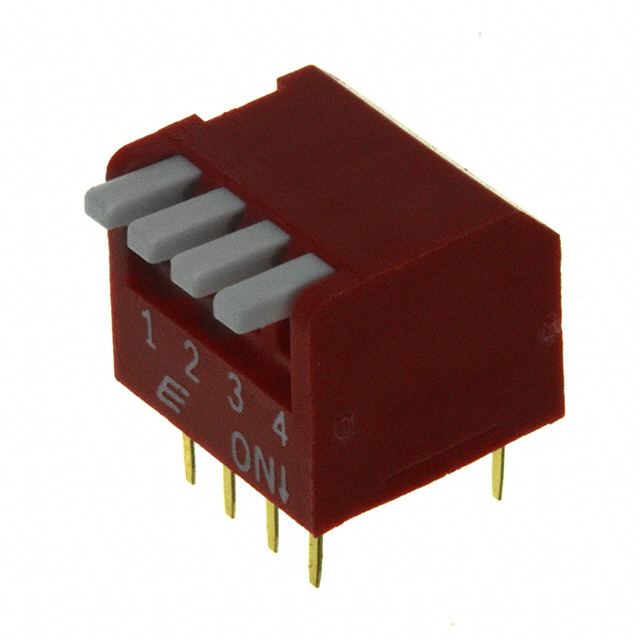

KAP1104 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Mechanical Life | Body Material | Electrical Life | Length [x] | Length [x] | Circuit | Termination Style | Height Above Board | Height Above Board | Washable | Voltage Rating | Number of Positions | Mounting Type | Actuator Level | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Pitch | Pitch | Actuator Type | Current Rating (Amps) | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Cycles | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 11.71 mm | 0.461 " | SPST | PC Pin | 10.2 mm | 0.402 in | 24 VDC | 4 | Right Angle Through Hole | Raised | 85 °C | -40 C | Phosphor Bronze | 2.54 mm | 0.1 " | Piano | 25 mA | Gold | ||
 E-Switch | 2000 Cycles | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 11.71 mm | 0.461 " | SPST | PC Pin | 10.2 mm | 0.402 in | 24 VDC | 4 | Right Angle Through Hole | Flush Recessed | 85 °C | -40 C | Phosphor Bronze | 2.54 mm | 0.1 " | Piano | 25 mA | Gold | ||
E-Switch | 2000 Cycles | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 11.71 mm | 0.461 " | SPST | PC Pin | 10.2 mm | 0.402 in | 24 VDC | 4 | Right Angle Through Hole | Flush Recessed | 85 °C | -40 C | Phosphor Bronze | 2.54 mm | 0.1 " | Piano | 25 mA | Gold | Tape Seal |
