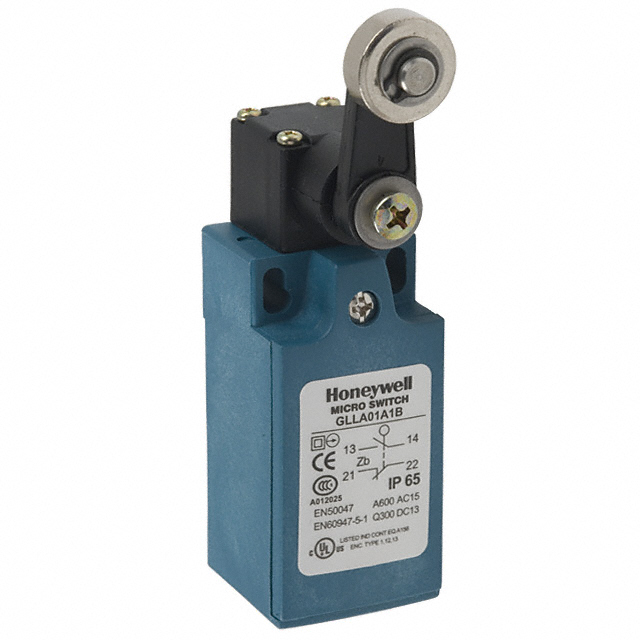

GLLA0 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 300V
| Part | Operating Force | Voltage Rating - DC | Mounting Type | Overtravel | Overtravel | Current Rating (Amps) | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Operating Position | Operating Position | Ingress Protection | Differential Travel | Differential Travel | Termination Style | Circuit | Release Force | Mechanical Life | Switch Function | Pretravel | Pretravel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 816 gf | 250 V | Chassis Mount | 4.5 mm | 0.175 in | 10 A | 300 V | 80 C | -10 °C | Lever Roller | 0.63 in | 16 mm | IP66 | 1.7 mm | 0.065 in | Screw Terminal | SPDT | 153 gf | 5000000 Cycles | On-Mom | 0.138 in | 3.5 mm | |
 Honeywell Sensing and Productivity Solutions | 12 gfm | 250 V | Chassis Mount | 40 ° | 10 A | 300 V | 80 C | -10 °C | Roller Side Rotary | 30 ° | IP66 | 18 ° | Screw Terminal | SPDT | 2.039 gfm | 5000000 Cycles | On-Mom | 30 ° | Metal Roller |
