LCBSB Series

Catalog

PCB MOUNTING, ROUND, NYLON, 17.8MM X 15.9MM

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall	Length - Overall	Between Board Height	Between Board Height	Between Board Height	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter
Essentra Components LCBSB-10-01A-RT	1.57 mm	0.062 in	0.0625 in	26.1 mm	1.028 in	15.88 mm	0.625 in	5 8	Nylon	3.99 mm	0.157 "	Snap Lock	Adhesive

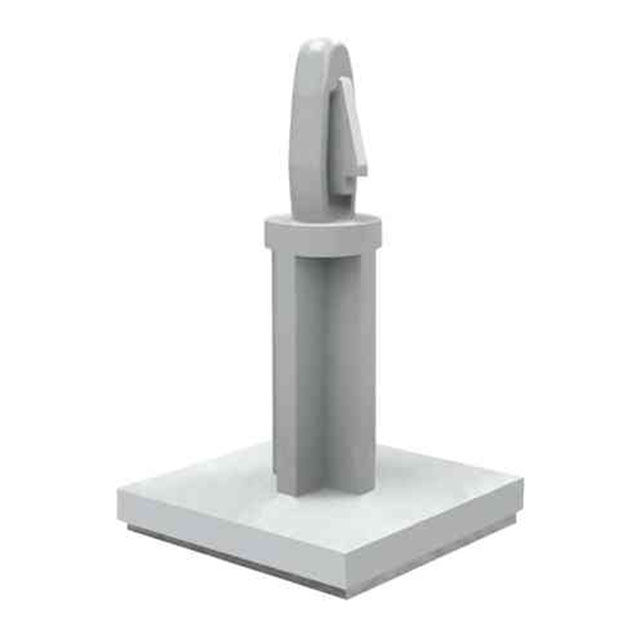

Essentra Components LCBSB-12-01A-RT	1.57 mm	0.062 in	0.0625 in			19.05 mm	0.75 "	0.75 "	Nylon	3.99 mm	0.157 "	Snap Lock	Adhesive	29.3 mm	1.154 in
Essentra Components LCBSBM-5-01A-RT	1.57 mm	0.062 in	0.0625 in			7.95 mm	0.313 in	0.3125 in	Nylon			Snap Lock	Adhesive	16.6 mm	0.654 in	0.125 in	0.125 in	3.18 mm
Essentra Components LCBSB-12M-01	1.57 mm	0.062 in	0.0625 in			19.05 mm	0.75 "	0.75 "	Nylon Flame Retardant	4 mm	0.157 "	Snap Lock	Adhesive

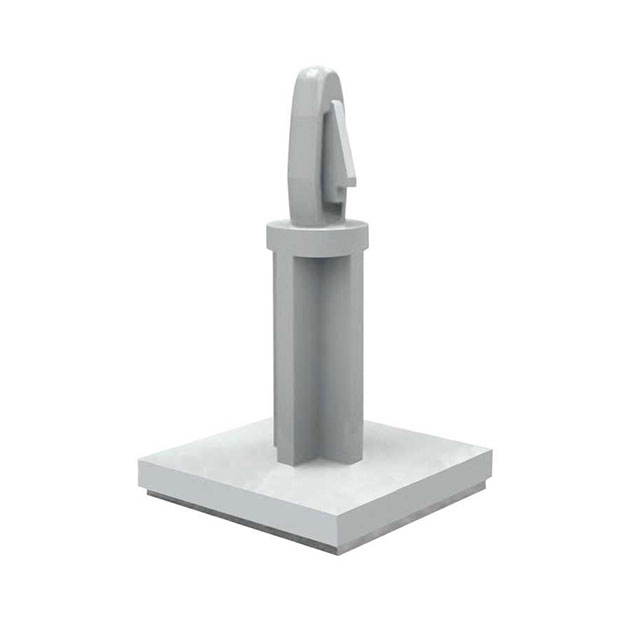

Essentra Components LCBSB-6-01A-RT	1.57 mm	0.062 in	0.0625 in			9.53 mm	0.375 in	0.375 "	Nylon	3.99 mm	0.157 "	Snap Lock	Adhesive	19.7 mm	0.776 in
Essentra Components LCBSBM-3-01A-RT	1.57 mm	0.062 in	0.0625 in			0.1875 in	0.188 in		Nylon			Snap Lock	Adhesive	13.5 mm	0.531 in	0.125 in	0.125 in	3.18 mm
Essentra Components LCBSB-8M-01A-RT	1.57 mm	0.062 in	0.0625 in			8 mm	0.315 in		Nylon	3.99 mm	0.157 "	Snap Lock	Adhesive	18.2 mm	0.717 "
Essentra Components LCBSBM-10-01A	1.57 mm	0.062 in	0.0625 in			15.88 mm	0.625 in	5 8	Nylon			Snap Lock	Adhesive			0.125 in	0.125 in	3.18 mm
Essentra Components LCBSB-8-01A-RT	1.57 mm	0.062 in	0.0625 in			12.7 mm	0.5 in	0.5 in	Nylon	3.99 mm	0.157 "	Snap Lock	Adhesive	22.9 mm	0.902 in
