9GV Type Series

Catalog

DC FANS AXIAL FAN, 80X80X38MM, 12VDC, 131CFM, 36W, 3A, 63DBA, GUIDE VANE, RIBLESS, TACH

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Features	Noise	Air Flow	Air Flow	Voltage - Rated	RPM	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Width [y]	Static Pressure	Static Pressure	Approval Agency	Fan Type	Weight [custom]	Weight [custom]	Bearing Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Size / Dimension [y]	Width [x]

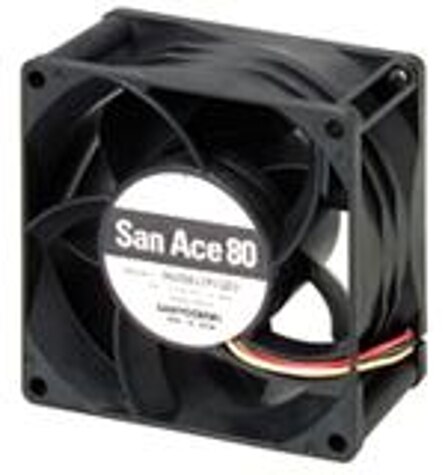

Sanyo Denki America Inc. 9GV0812H1011	3 A	40000 Hrs	Plastic	Plastic	10.8 VDC	13.2 VDC	Locked Rotor Protection Speed Sensor (Tach)	63 dB	131 CFM	3.67 mł/min	12 VDC	9700 RPM	80 mm	80 mm	36 W	38 mm	1.77 in H2O	440.9 Pa	CSA TUV UL	Tubeaxial	220 g	0.485 lb	Ball	3 Wire Leads	-20 ░C	70 °C
Sanyo Denki America Inc. 9GV0812P1G031							PWM Control Speed Sensor (Tach)	65 dB	138 CFM	3.86 m³/min	12 VDC	10200 RPM	80 mm	80 mm	45.6 W	38 mm	1.97 in H2O	490.7 Pa	CSA TUV UL	Tubeaxial	220 g	0.485 lb	Ball	4 Wire Leads	-20 ░C	70 °C

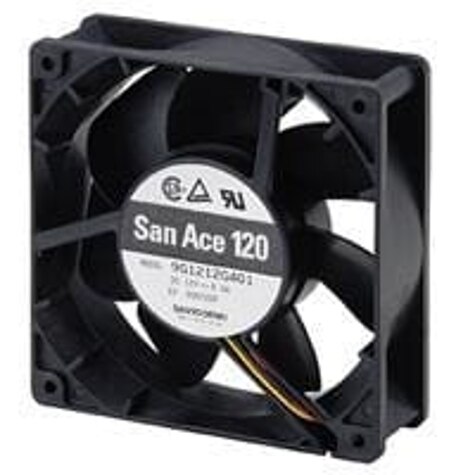

Sanyo Denki America Inc. 9GV1212J1011							Locked Rotor Protection Speed Sensor (Tach)	64 dB(A)	224 CFM	6.27 mł/min	12 VDC	6400 RPM	120 mm	120 mm	36 W	38 mm	1.45 in H2O	361.2 Pa	CSA TUV UL	Tubeaxial	360.15 g	0.794 lb	Ball	3 Wire Leads	-20 ░C	70 °C
Sanyo Denki America Inc. 9GV0824G102	1.6 A	40000 Hrs	Plastic	Plastic				65 dB	138 CFM	3.86 m³/min	24 VDC	10200 RPM	80 mm	80 mm	38.4 W	38 mm	1.97 in H2O	490.7 Pa	CSA TUV UL	Tubeaxial	220 g	0.485 lb	Ball	2 Wire Leads	-20 ░C	70 °C
Sanyo Denki America Inc. 9GV3612G3D01	0.34 A	40000 Hrs	Plastic	Plastic	7 V	13.2 VDC	Locked Rotor Sensor	52 dB	14.1 CFM	0.395 m³/min	12 VDC	14000 RPM		36 mm			1.104 in H2O	275 Pa	CSA TUV UL	Tubeaxial			Ball	3 Wire Leads	-20 ░C	60 °C	60 °C	-4 °F	46.27 g	0.102 lb	36 mm	28 mm
Sanyo Denki America Inc. 9GV1512P5M011			Plastic	Plastic			Locked Rotor Protection PWM Control Speed Sensor (Tach)				12 VDC		150 mm	150 mm		50 mm			CSA TUV UR	Tubeaxial			Ball	4 Wire Leads
Sanyo Denki America Inc. 9GV1212J1D01			Plastic	Plastic			Locked Rotor Sensor				12 VDC		120 mm	120 mm		38 mm			cURus TUV	Tubeaxial			Ball	3 Wire Leads
Sanyo Denki America Inc. 9GV0812P1M031							PWM Control Speed Sensor (Tach)	51 dB(A)	81 CFM	2.27 m³/min	12 VDC	6000 RPM	80 mm	80 mm	9 W	38 mm	0.68 in H2O	169.4 Pa	CSA TUV UL	Tubeaxial	220 g	0.485 lb	Ball	4 Wire Leads	-20 ░C	70 °C
Sanyo Denki America Inc. 9GV0624M101							Speed Sensor (Tach)				24 VDC		60 mm	60 mm	17.52 W	38 mm			CSA TUV UL	Tubeaxial			Ball	3 Wire Leads					130.18 g	0.287 lb
Sanyo Denki America Inc. 9GV0624P1M031							PWM Control Speed Sensor (Tach)	60 dB(A)	68 CFM	1.9 m³/min	24 VDC	13000 RPM	60 mm	60 mm	17.52 W	38 mm	1.99 in H2O	495.7 Pa	CSA TUV UL	Tubeaxial			Ball	4 Wire Leads	-20 ░C	70 °C			130.18 g	0.287 lb
