ECQ-UAAV474 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

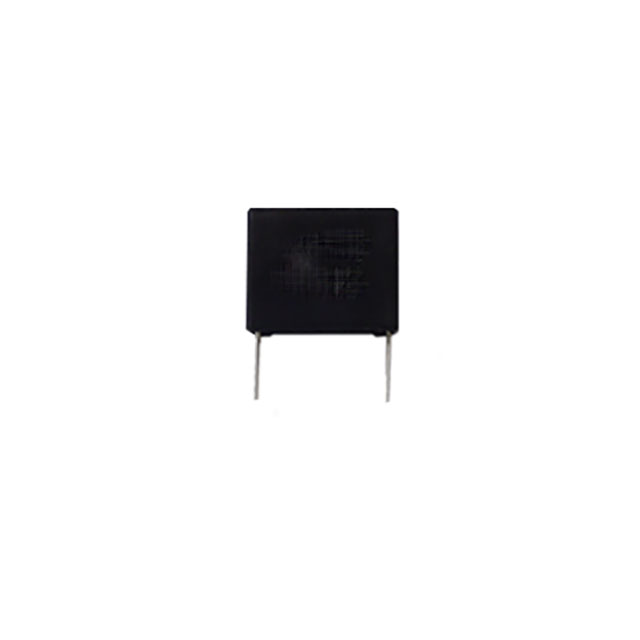

CAP FILM 0.47UF 10% 310VAC RAD
| Part | Capacitance | Dielectric Material | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Lead Spacing | Lead Spacing | Applications | Mounting Type | Termination | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 0.47 µF | Polypropylene (PP) Metallized | 10 % | 1.024 in | 9 mm | 0.354 in | 26 mm | -40 C | 110 °C | 310 V | 0.886 in | 22.5 mm | Automotive EMI RFI Suppression | Through Hole | PC Pins | 0.65 in | 16.5 mm | Radial | AEC-Q200 X2 |
 Panasonic Electronic Components | 0.47 µF | Polypropylene (PP) Metallized | 20 % | 1.024 in | 9 mm | 0.354 in | 26 mm | -40 C | 110 °C | 310 V | 0.886 in | 22.5 mm | Automotive EMI RFI Suppression | Through Hole | PC Pins | 0.65 in | 16.5 mm | Radial | AEC-Q200 X2 |
