23RCFB Series

Catalog

FASTENER, HINGED CABLE CLAMP, 12.7 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 4.8 MM

Part	Type	Panel Hole Size	Panel Hole Size	Material	Width [y]	Width [y]	Color	Opening Size	Opening Size	Type Attributes	Mounting Type	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Width [x]	Width	Width
Essentra Components 23RCFB050	Clip C-Type	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	0.187 "	4.75 mm	Natural	0.5 in	12.7 mm	Hinged Locking	Fir Tree	UL94 V-2
Essentra Components 23RCFB035C	Clip C-Type	6.5 mm	0.256 in	Polyamide (PA66) Nylon 6/6			Natural	0.35 in	8.89 mm	Hinged Locking	Fir Tree	UL94 V-2	5.16 mm	0.51 mm	0.02 in	0.203 in	0.3 in	7.62 mm

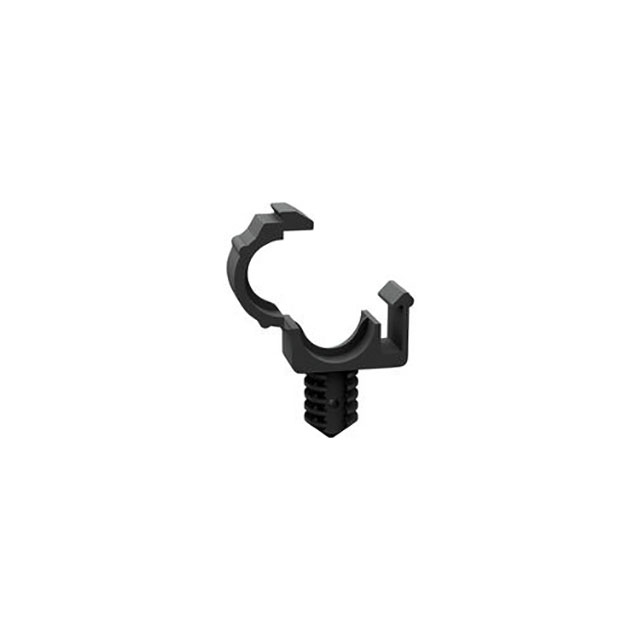

Essentra Components 23RCFB035CB	Clip C-Type	6.5 mm	0.256 in	Polyamide (PA66) Nylon 6/6			Black	0.35 in	8.89 mm	Hinged Locking	Fir Tree	UL94 V-2	5.16 mm	0.51 mm	0.02 in	0.203 in	0.3 in	7.62 mm

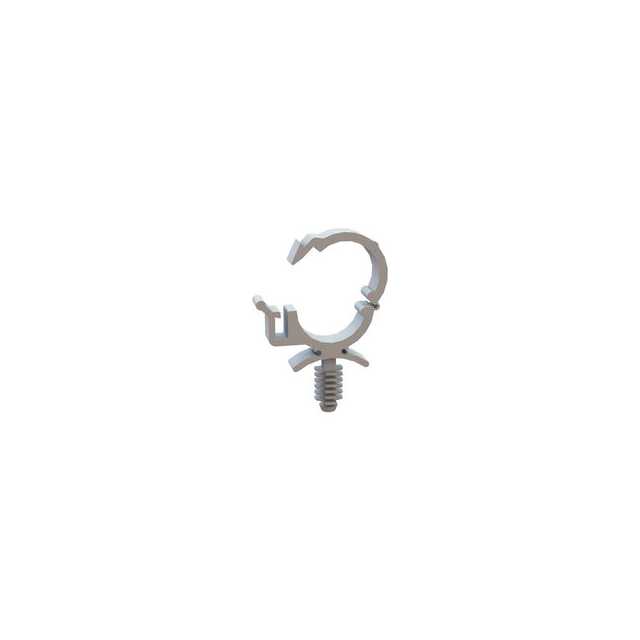

Essentra Components 23RCFB05025	Clip C-Type	4.75 mm	0.187 in	Polyamide (PA66) Nylon 6/6	0.187 "	4.75 mm	Natural	0.5 in	12.7 mm	Hinged Locking	Fir Tree	UL94 V-2
Essentra Components 23RCFB037B	Clip C-Type	4.75 mm	0.187 in	Polyamide (PA66) Nylon 6/6	0.187 "	4.75 mm	Natural			Hinged Locking	Fir Tree	UL94 V-2

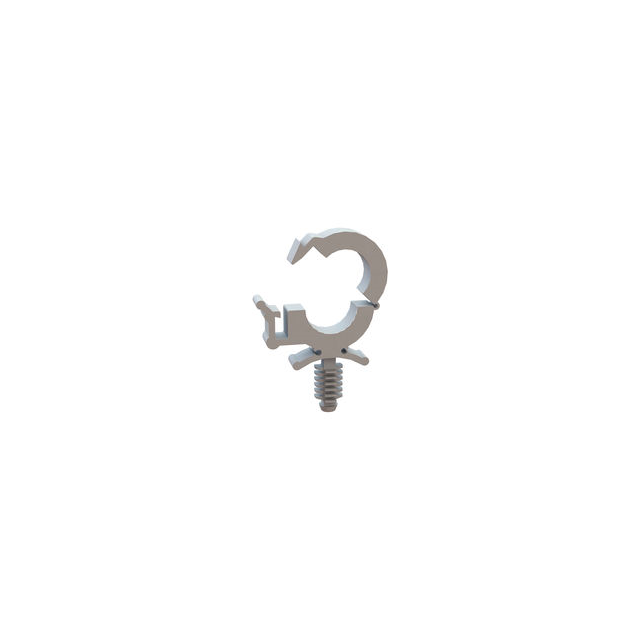

Essentra Components 23RCFB037	Clip C-Type	4.75 mm	0.187 in	Polyamide (PA66) Nylon 6/6	0.187 "	4.75 mm	Natural			Hinged Locking	Fir Tree	UL94 V-2
Essentra Components 23RCFB050B	Clip C-Type	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6	0.187 "	4.75 mm	Natural	0.5 in	12.7 mm	Hinged Locking	Fir Tree	UL94 V-2
Essentra Components 23RCFB100	Clip C-Type	6.35 mm	0.25 in	Polyamide (PA66) Nylon 6/6			Natural	1 in	25.4 mm	Hinged Locking	Fir Tree	UL94 V-2						9.53 mm	0.375 in
