BA10339 Series

Catalog

COMPARATOR QUAD ±18V/36V 14-PIN SSOP-B T/R

Part	Current - Quiescent (Max) [Max]	Current - Input Bias (Max) [Max]	Mounting Type	Number of Elements	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Type	Output Type	Voltage - Input Offset (Max) [Max]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Package / Case	Package / Case	Package / Case	Current - Output (Typ)	Package / Case	Package / Case [x]	Package / Case [x]
Rohm Semiconductor BA10339FV-E2	2 mA	0.25 µA	Surface Mount	4	14-SSOP-B	85 °C	-40 C	Standard (General Purpose)	Open-Collector	5 mV	1.5 V 18 V 36 V	-1.5 V 3 V	14-LSSOP	0.173 "	4.4 mm	16 mA
Rohm Semiconductor BA10339	2 mA	0.25 µA	Through Hole	4	14-DIP	85 °C	-40 C	General Purpose Standard (General Purpose)	Open-Collector	5 mV	1.5 V 18 V 36 V	-1.5 V 3 V	14-DIP		0.3 in	16 mA	7.62 mm

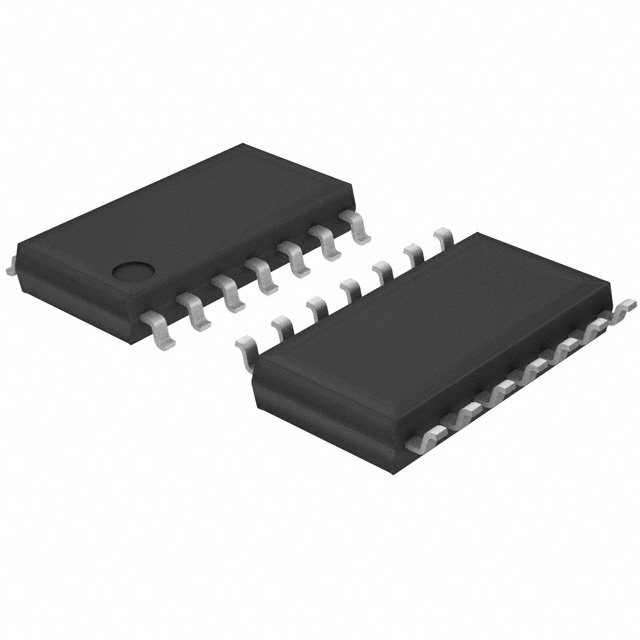

Rohm Semiconductor BA10339F-E2	2 mA	0.25 µA	Surface Mount	4	14-SOP	85 °C	-40 C	General Purpose Standard (General Purpose)	Open-Collector	5 mV	1.5 V 18 V 36 V	-1.5 V 3 V	14-SOIC			16 mA		0.173 "	4.4 mm
