2337939 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

STANDARD CARD EDGE CONNECTORS PCIE GEN4 CON,SMT, 64P,GF,MYLAR,ST

Part	Termination	Contact Finish	Card Type	Color	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Finish Thickness	Features	Read Out	Mounting Type	Contact Type	Gender	Pitch [x]	Pitch [x]	Contact Material	Number of Positions	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]

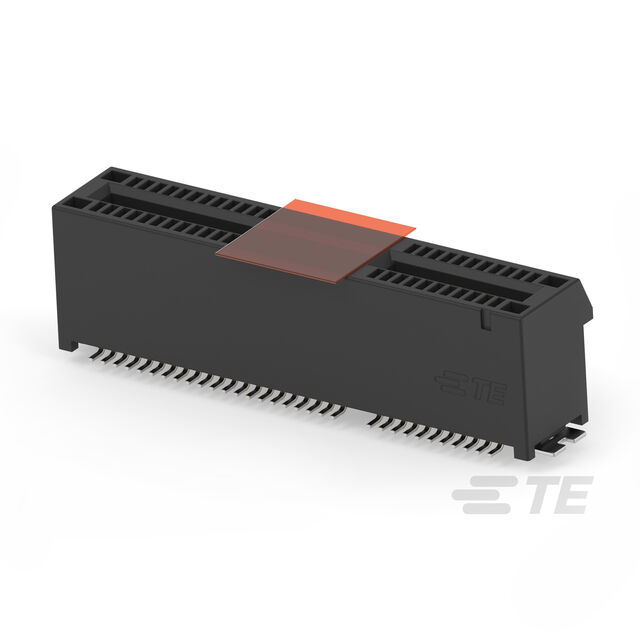

TE Connectivity Raychem Cable Protection 3-2337939-2	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm	21	11	2	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	64	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 2337939-4	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm			2	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	164	Liquid Crystal Polymer (LCP)	71	11

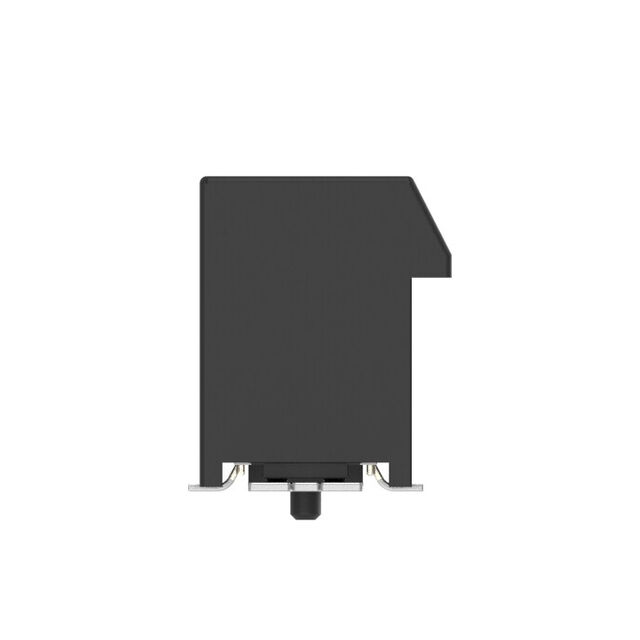

TE Connectivity Raychem Cable Protection 6-2337939-4	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm			2		Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	164	Liquid Crystal Polymer (LCP)	71	11	15 µin	0.38 µm

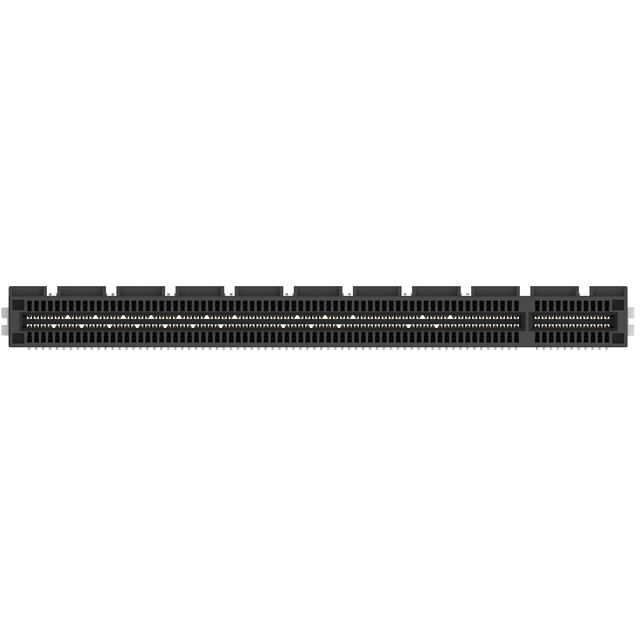

TE Connectivity Raychem Cable Protection 7-2337939-4	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm			2		Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	164	Liquid Crystal Polymer (LCP)	71	11	30 Áin	0.76 Ám

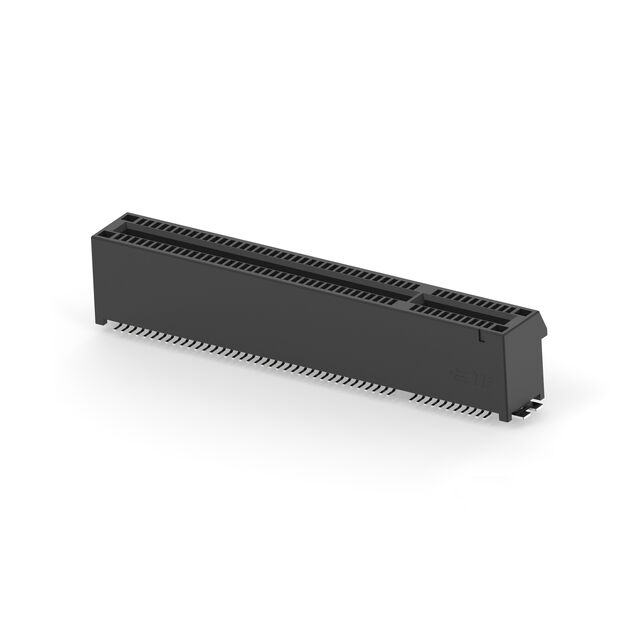

TE Connectivity Raychem Cable Protection 2-2337939-3	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm	38	11	2		Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	98	Liquid Crystal Polymer (LCP)			30 Áin	0.76 Ám
TE Connectivity Raychem Cable Protection 3-2337939-4	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm			2	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	164	Liquid Crystal Polymer (LCP)	71	11

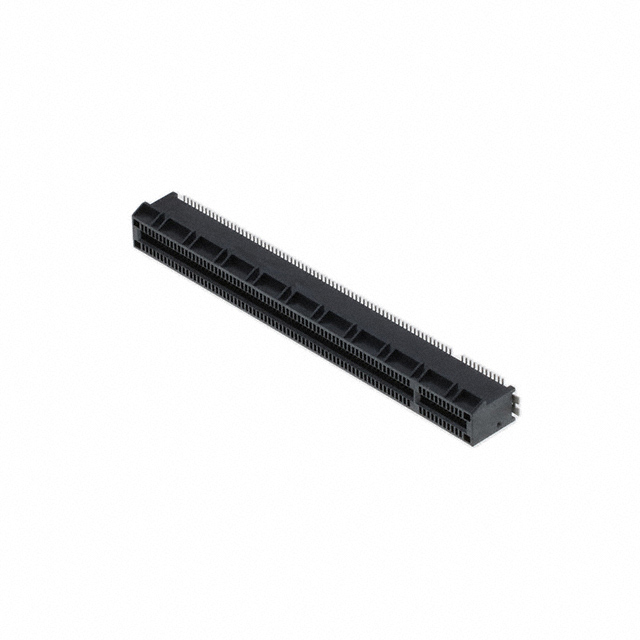

TE Connectivity Raychem Cable Protection 3-2337939-8	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm			2	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	164	Liquid Crystal Polymer (LCP)	71	11			85 °C	-40 °C

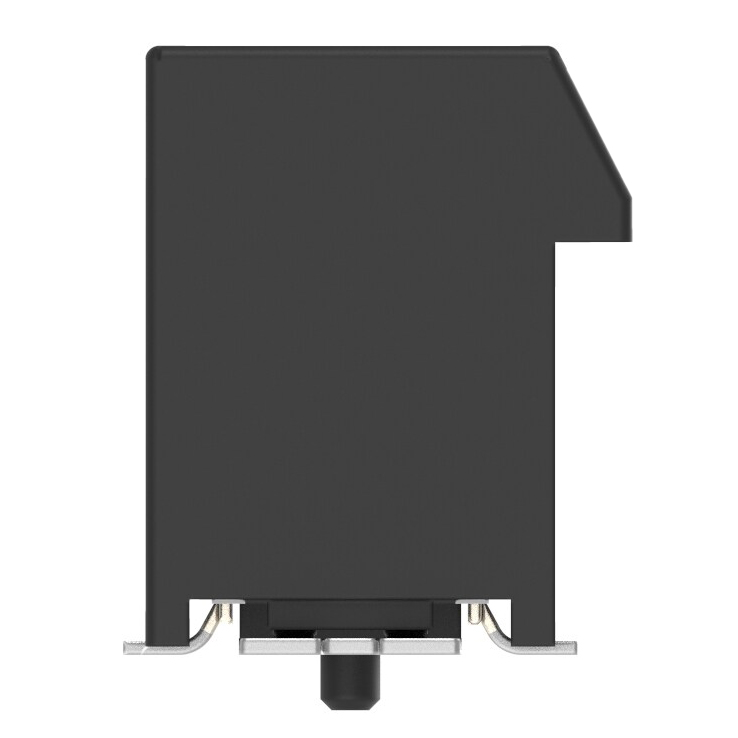

TE Connectivity Raychem Cable Protection 6-2337939-2	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm	21	11	2		Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	64	Liquid Crystal Polymer (LCP)			15 µin	0.38 µm

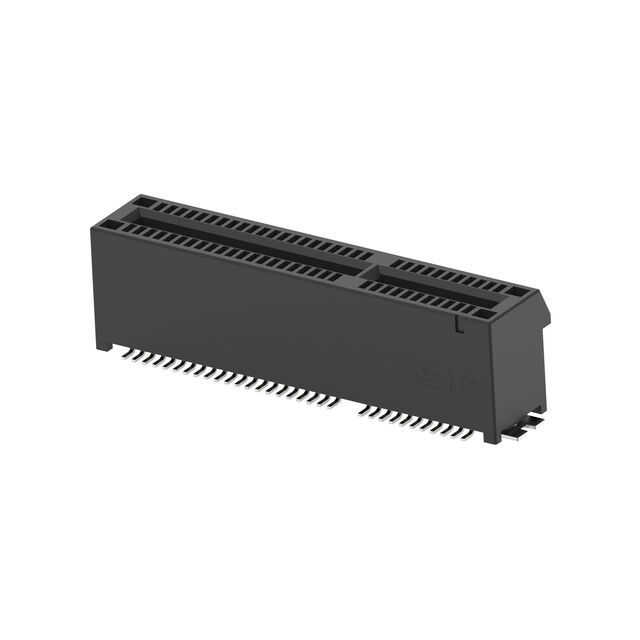

TE Connectivity Raychem Cable Protection 2337939-2	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm	21	11	2	Flash	Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	64	Liquid Crystal Polymer (LCP)

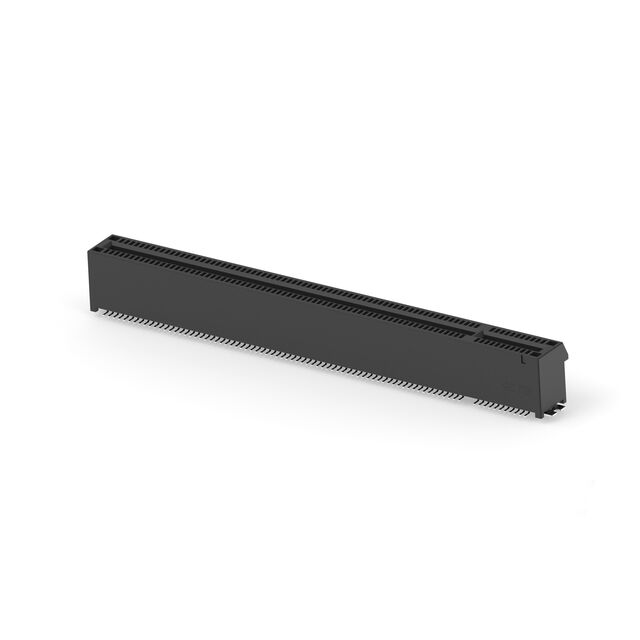

TE Connectivity Raychem Cable Protection 2-2337939-4	Solder	Gold	PCI Express™	Black	0.062 in	1.57 mm			2		Board Guide Locking Ramp Pick and Place Solder Retention	Dual	Surface Mount	Cantilever	Female	0.039 in	1 mm	Copper Alloy	164	Liquid Crystal Polymer (LCP)	71	11	30 Áin	0.76 Ám
