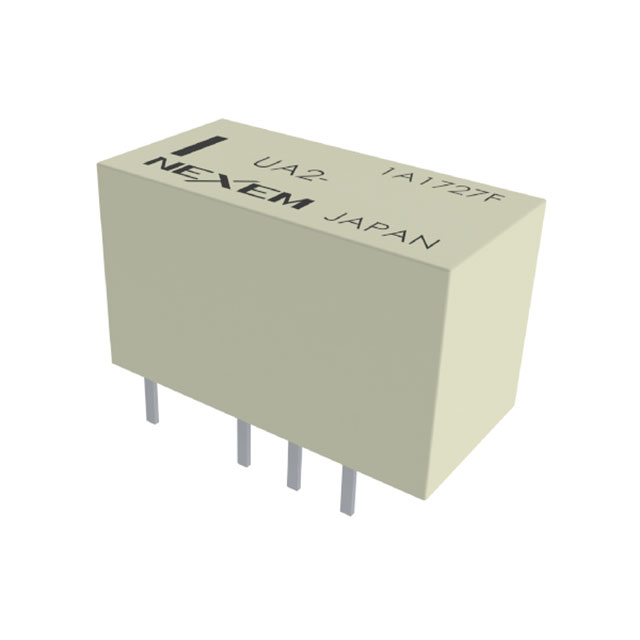

UA2-3N Series
Manufacturer: KEMET
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 3V
| Part | Coil Resistance | Switching Voltage [Max] | Approval Agency | Mounting Type | Contact Rating (Current) | Relay Type | Termination Style | Contact Material | Operate Time | Coil Current | Must Release Voltage | Coil Type | Contact Form | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 64.3 Ohms | 220 VDC 250 VAC | CSA TUV UL | Through Hole | 1 A | General Purpose | PC Pin | Gold Alloy Silver Alloy | 2 ms | 46.7 mA | 0.3 VDC | Non Latching | DPDT (2 Form C) | 2.25 VDC | 85 °C | -40 C | 1 ms | 220 W 250 VA |
