0501020A Series
Manufacturer: LITTELFUSE
Beta
⌘K

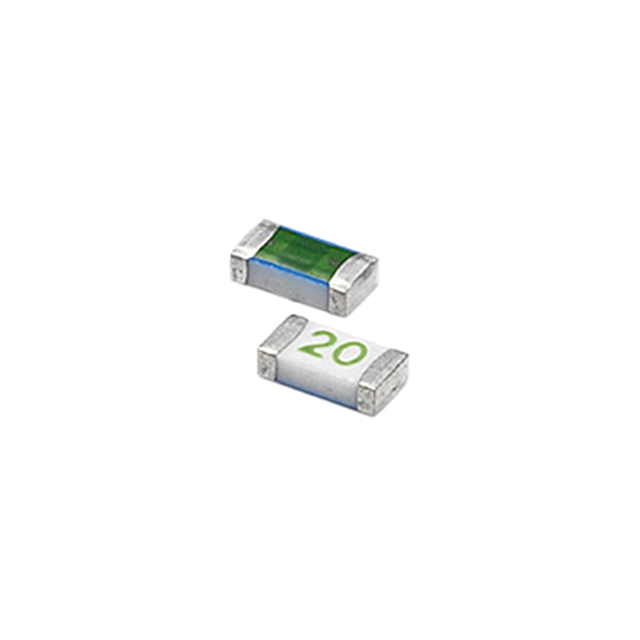

FUSE, SURFACE MOUNT, 20 A, FAST ACTING, 32 VDC, 1206 [3216 METRIC], 501A SERIES
| Part | DC Cold Resistance | Breaking Capacity @ Rated Voltage | Approval Agency | Voltage Rating - DC | Response Time | Current Rating (Amps) | Mounting Type | Fuse Type | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.00194 Ohms | 150 A | CSA cURus | 32 V | Fast Blow | 20 A | Surface Mount | Board Mount (Cartridge Style Excluded) | 86.36 | -55 C | 125 °C | 1206 (3216 Metric) | 0.064 in | 3.2 mm | 0.126 " | 0.033 in | 1.63 mm | 0.84 mm |
