LP2980-ADJ Series

50-mA, 16-V, adjustable low-dropout voltage regulator with enable

Catalog

50-mA, 16-V, adjustable low-dropout voltage regulator with enable

Part	Protection Features	Control Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Current - Output	Output Type	Output Configuration	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Mounting Type	Number of Regulators	Voltage Dropout (Max) [Max]	Output Type	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments LP2980IM5-ADJ	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	1.23 V	50 mA	Adjustable	Positive	95 µA	16 V	Surface Mount	1	0.22 V
Texas Instruments LP2980AIM5X-4.7	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	4.7 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm
Texas Instruments LP2980IM5X-4.7	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	4.7 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm
Texas Instruments LP2980IM5X-3.0	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA		50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm
Texas Instruments LP2980IM5-5.0	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	5 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm
Texas Instruments LP2980AIM5-3.3	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	3.3 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm
Texas Instruments LP2980AIM5X-3.3	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	3.3 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm
Texas Instruments LP2980AIM5-3.0	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA		50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm

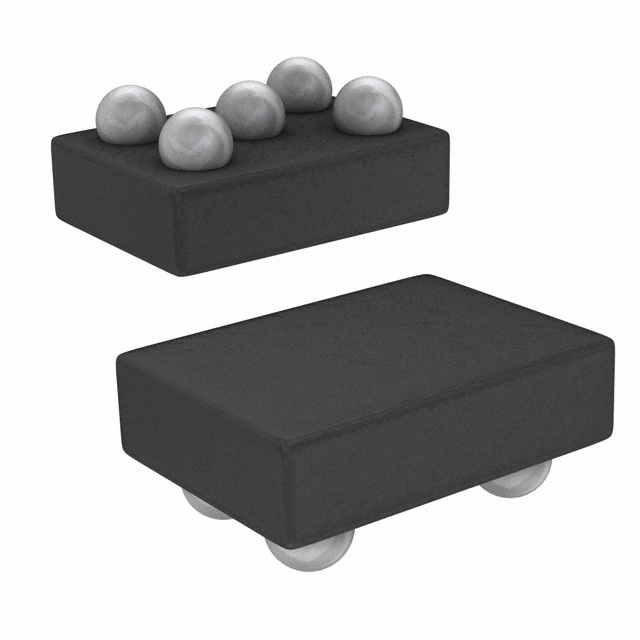

Texas Instruments LP2980IBP-5.0/NOPB	Over Current Over Temperature Short Circuit	Enable	5-µSMD	125 °C	-40 °C	5-VFBGA	1.2 mA	5 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm	0.93	1.11
Texas Instruments LP2980AIM5X-3.2/NOPB	Over Current Over Temperature Short Circuit	Enable	SOT-23-5	125 °C	-40 °C	SC-74A SOT-753	1.2 mA	3.2 V	50 mA		Positive	95 µA	16 V	Surface Mount	1	0.22 V	1.81 mOhm

Catalog

50-mA, 16-V, adjustable low-dropout voltage regulator with enable

Key Features

• VIN range (new chip): 2.5V to 16VVOUT range (new chip):1.2V to 5.0V (fixed, 100mV steps)VOUT accuracy:±0.5% for A-grade legacy chip±1% for standard-grade legacy chip±0.5% for new chip (A grade and standard grade)Output accuracy over load, and temperature: ±1% (new chip)Output current: Up to 50mALow IQ (new chip): 69µA at ILOAD = 0mALow IQ (new chip): 380µA at ILOAD = 50mAShutdown current over temperature:0.01µA (typ) for legacy chip1.12µA (typ) for new chipOutput current limiting and thermal protectionStable with 2.2µF ceramic capacitors (new chip)High PSRR (new chip):75dB at 1kHz, 45dB at 1MHzOperating junction temperature: –40°C to +125°CPackage: 5-pin SOT-23 (DBV)VIN range (new chip): 2.5V to 16VVOUT range (new chip):1.2V to 5.0V (fixed, 100mV steps)VOUT accuracy:±0.5% for A-grade legacy chip±1% for standard-grade legacy chip±0.5% for new chip (A grade and standard grade)Output accuracy over load, and temperature: ±1% (new chip)Output current: Up to 50mALow IQ (new chip): 69µA at ILOAD = 0mALow IQ (new chip): 380µA at ILOAD = 50mAShutdown current over temperature:0.01µA (typ) for legacy chip1.12µA (typ) for new chipOutput current limiting and thermal protectionStable with 2.2µF ceramic capacitors (new chip)High PSRR (new chip):75dB at 1kHz, 45dB at 1MHzOperating junction temperature: –40°C to +125°CPackage: 5-pin SOT-23 (DBV)

Description

The LP2980-ADJ is an adjustable-output, wide-input, low-dropout voltage regulator supporting an input voltage range up to 16 V and up to 50 mA of load current. The LP2980-ADJ supports an output range of 1.2 V to 15.0 V (new chip) and 1.23 V to 15.0 V (legacy chip). Additionally, the LP2980-ADJ (new chip) has a 1% output accuracy across load and temperature that can meet the needs of low-voltage microcontrollers (MCUs) and processors. In the new chip, wide bandwidth PSRR performance of greater than 70 dB at 1 kHz and 45 dB at 1 MHz helps attenuate the switching frequency of an upstream DC/DC converter and minimize post regulator filtering. The internal soft-start time and current-limit protection reduce inrush current during start up, thus minimizing input capacitance. Standard protection features, such as overcurrent and overtemperature protection, are included. The LP2980-ADJ is available in a 5-pin, 2.9-mm × 1.6-mm SOT-23 (DBV) package. The LP2980-ADJ is an adjustable-output, wide-input, low-dropout voltage regulator supporting an input voltage range up to 16 V and up to 50 mA of load current. The LP2980-ADJ supports an output range of 1.2 V to 15.0 V (new chip) and 1.23 V to 15.0 V (legacy chip). Additionally, the LP2980-ADJ (new chip) has a 1% output accuracy across load and temperature that can meet the needs of low-voltage microcontrollers (MCUs) and processors. In the new chip, wide bandwidth PSRR performance of greater than 70 dB at 1 kHz and 45 dB at 1 MHz helps attenuate the switching frequency of an upstream DC/DC converter and minimize post regulator filtering. The internal soft-start time and current-limit protection reduce inrush current during start up, thus minimizing input capacitance. Standard protection features, such as overcurrent and overtemperature protection, are included. The LP2980-ADJ is available in a 5-pin, 2.9-mm × 1.6-mm SOT-23 (DBV) package.
