333-015 Series

Manufacturer: EDAC Inc.

Catalog

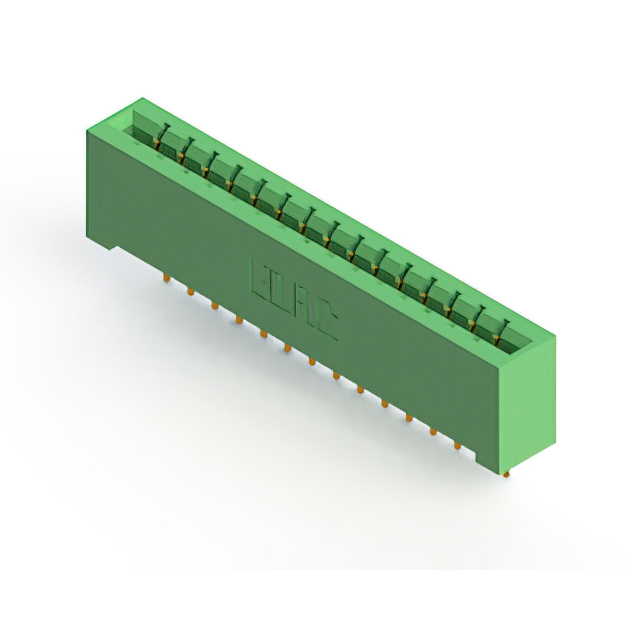

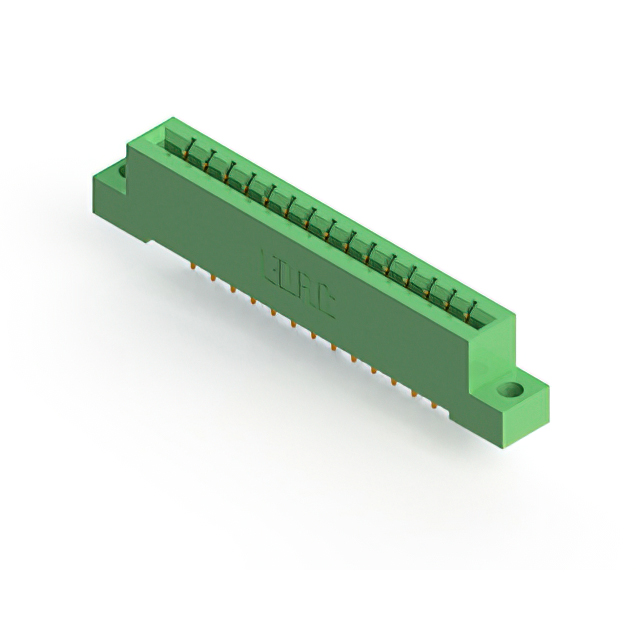

CONN EDGE SGL FMALE 15POS 0.156

Part	Termination Rows	Material - Insulation	Read Out	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Card Thickness [Max]	Card Thickness [Min]	Termination	Card Type	Contact Finish	Mounting Type	Gender	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Color	Number of Positions/Bay/Row	Number of Positions

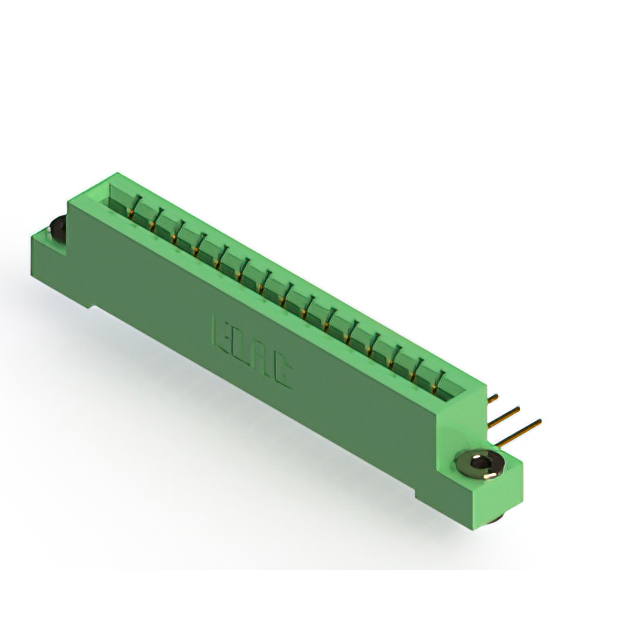

EDAC Inc. 333-015-559-103	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Gold	Right Angle Through Hole	Female	Copper Alloy	0.116 "	Floating Bobbin Flush Mount	2.95 mm	0.25 Ám	10 Áin	Cantilever	Green	15	15

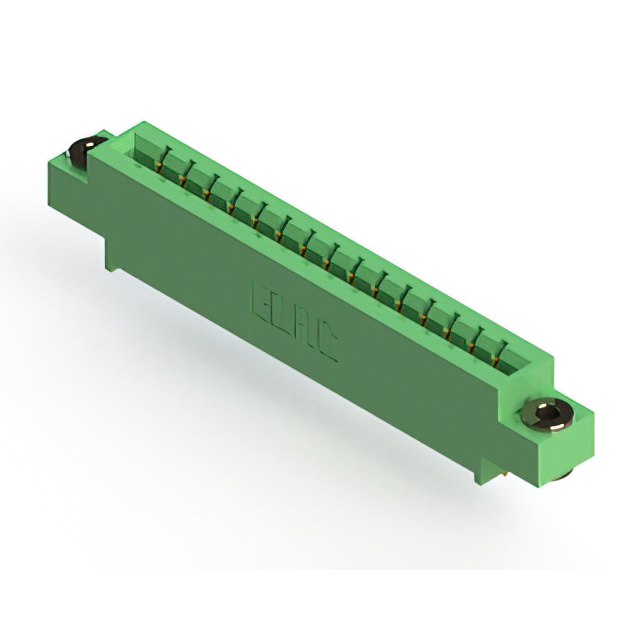

EDAC Inc. 333-015-521-603	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	0.25 Ám	10 Áin	Cantilever	Green	15	15

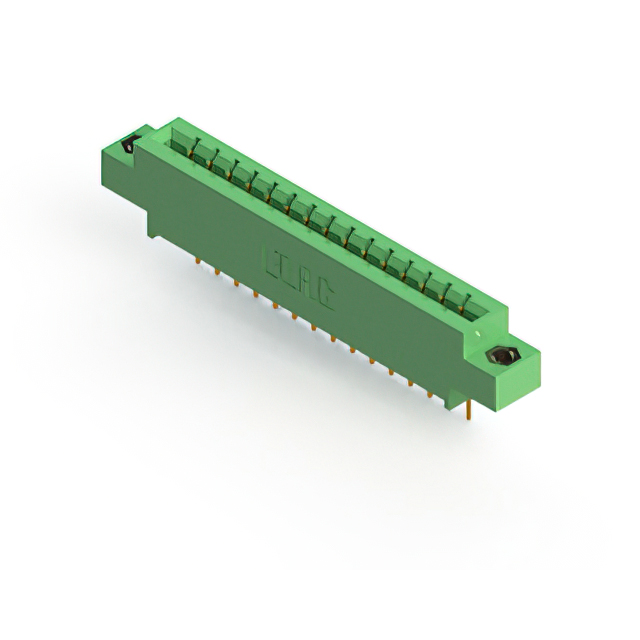

EDAC Inc. 333-015-541-607	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy		M3 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	Green	15	15

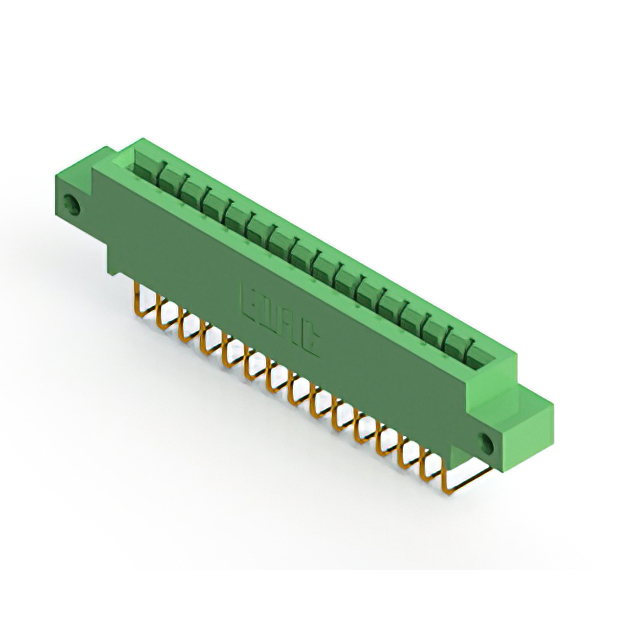

EDAC Inc. 333-015-558-612	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Single Edge	Gold	Right Angle Through Hole	Female	Copper Alloy	0.128 "	Side Mount Opening Unthreaded	3.25 mm	0.25 Ám	10 Áin	Cantilever	Green	15	15

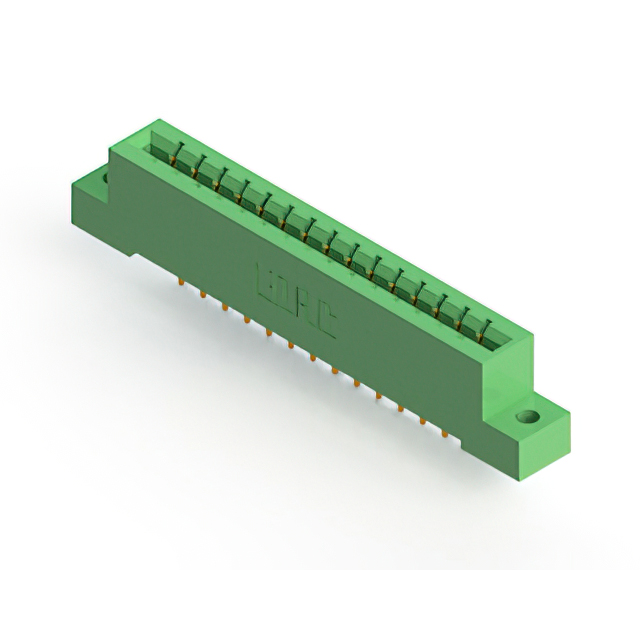

EDAC Inc. 333-015-523-102	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	0.25 Ám	10 Áin	Cantilever	Green	15	15

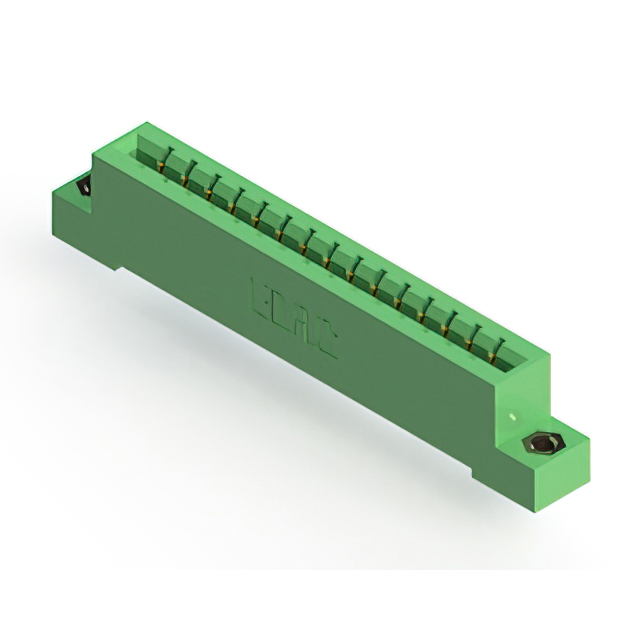

EDAC Inc. 333-015-524-107	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		0.25 Ám	10 Áin	Cantilever	Green	15	15
EDAC Inc. 333-015-542-104	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	0.25 Ám	10 Áin	Cantilever	Green	15	15

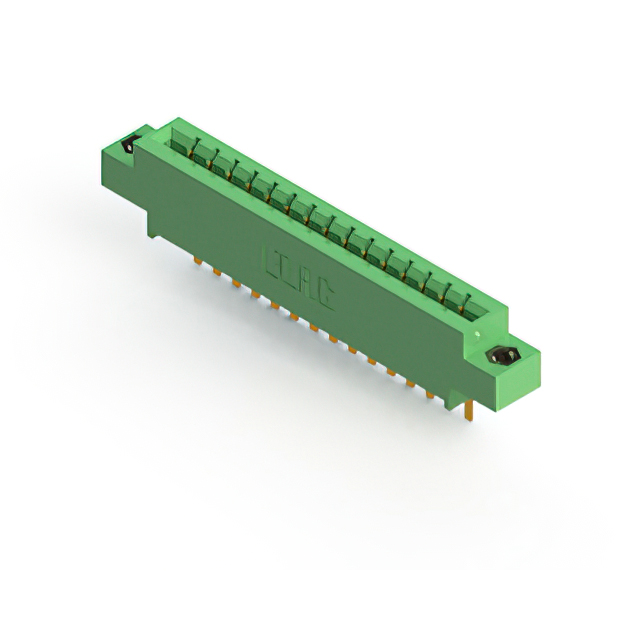

EDAC Inc. 333-015-544-608	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy		4-40 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	Green	15	15
EDAC Inc. 333-015-520-608	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Gold	Through Hole	Female	Copper Alloy		4-40 Threaded Insert Top Mount Opening		0.25 Ám	10 Áin	Cantilever	Green	15	15

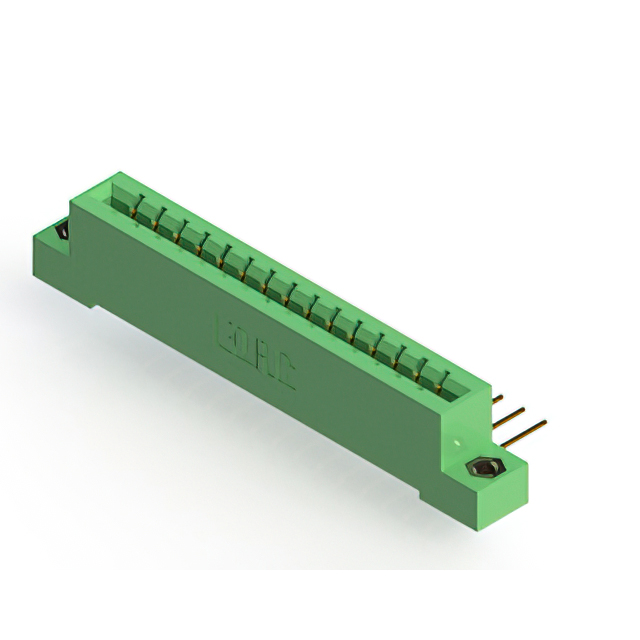

EDAC Inc. 333-015-559-107	1	Polyester Thermoplastic	Single	3.96 mm	0.156 in	-40 C	105 ░C	1	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	Non Specified - Single Edge	Gold	Right Angle Through Hole	Female	Copper Alloy		Flush Mount M3 Threaded Insert Top Opening		0.25 Ám	10 Áin	Cantilever	Green	15	15
