1658062 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN DIFF ARRAY RCP 28P SMD GOLD

Part	Number of Rows [custom]	Connector Type	Contact Finish	Pitch	Pitch	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board [z]	Height Above Board [z]	Number of Positions	Number of Positions [custom]	Height Above Board	Height Above Board
TE Connectivity AMP Connectors 7-1658062-1	2	Differential Pair Array Female	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	28
TE Connectivity AMP Connectors 3-1658062-3	2	Differential Pair Array Female	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm		84
TE Connectivity AMP Connectors 3-1658062-4	2	Differential Pair Array Female	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	112
TE Connectivity AMP Connectors 2-1658062-3	2	Receptacle Center Strip Contacts	Gold	0.8 mm	0.031 in	Surface Mount	2.54 µm	100 µin	Board Guide Ground Bus (Plane)			120		0.128 in	3.25 mm

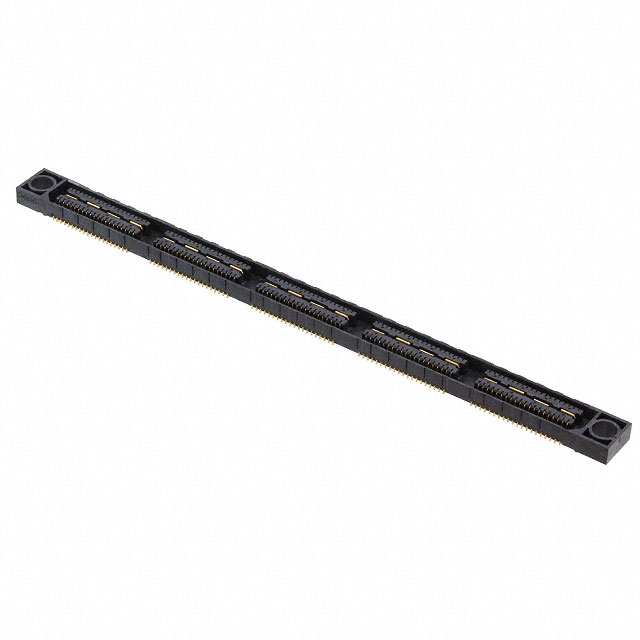

TE Connectivity AMP Connectors 1658062-5	2	Receptacle Center Strip Contacts	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	200
TE Connectivity AMP Connectors 5-1658062-2	2	Differential Pair Array Female	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	56
TE Connectivity AMP Connectors 1-1658062-2	2	Differential Pair Array Female	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	56

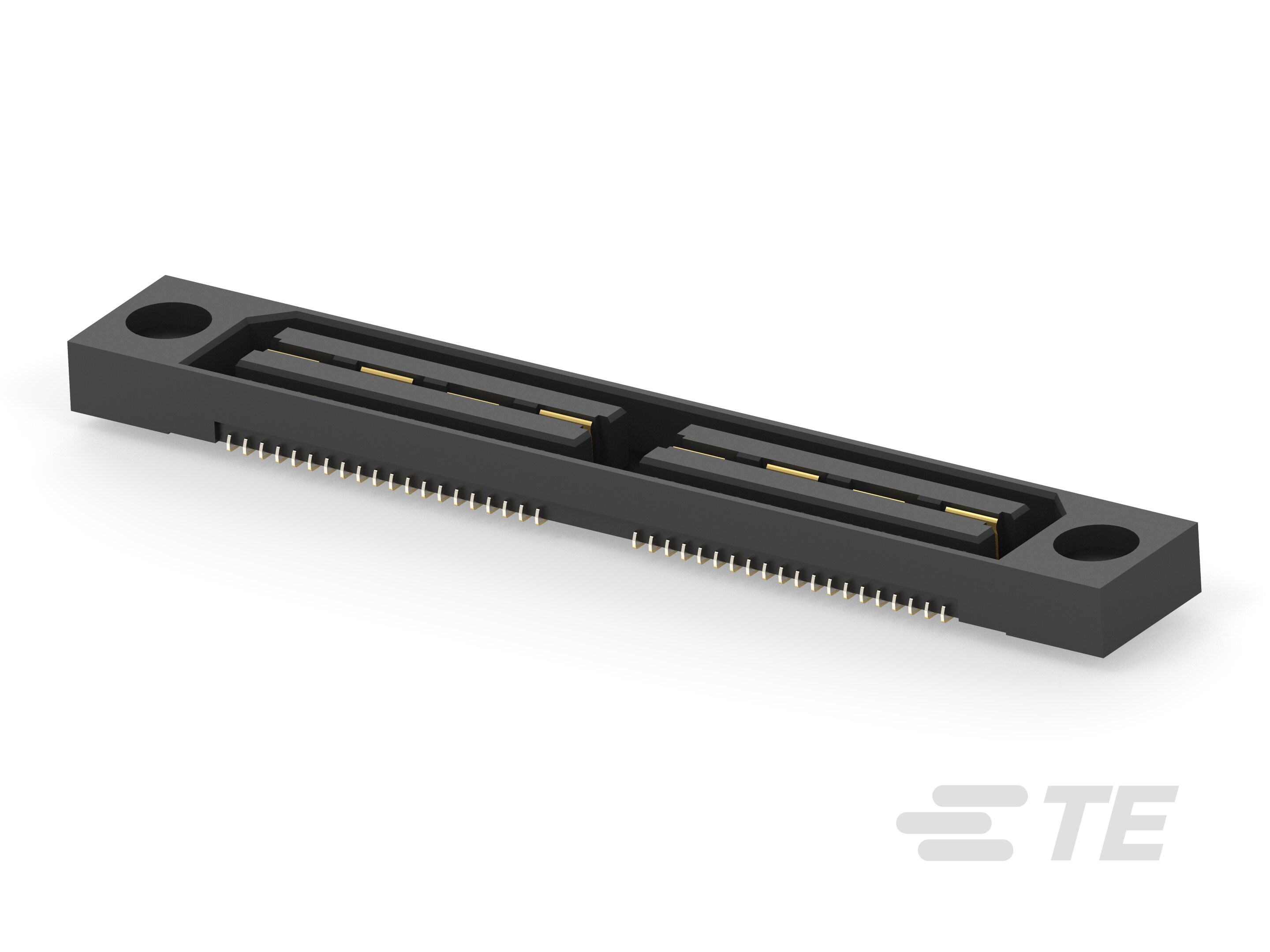

TE Connectivity AMP Connectors 6-1658062-2	2	Receptacle Center Strip Contacts	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	80

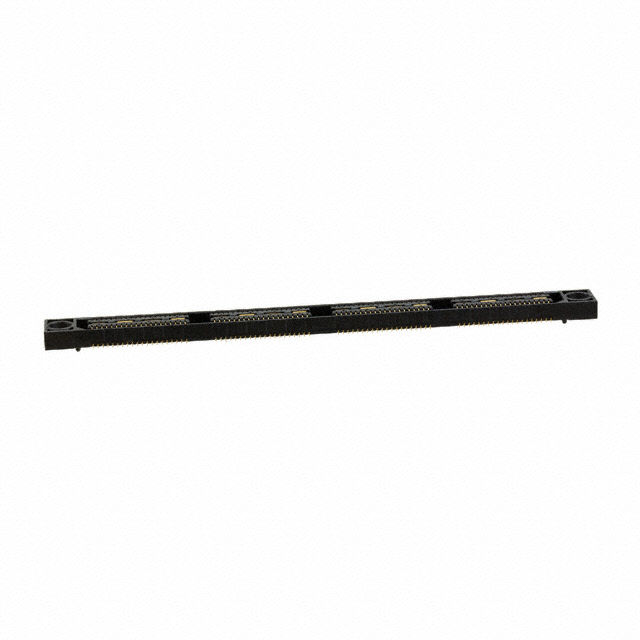

TE Connectivity AMP Connectors 1658062-4	2	Receptacle Center Strip Contacts	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	160
TE Connectivity AMP Connectors 3-1658062-1	2	Differential Pair Array Female	Gold	0.8 mm	0.031 in	Surface Mount	0.25 Ám	10 Áin	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	28
