6EP14373 Series
Manufacturer: Siemens
Beta
⌘K

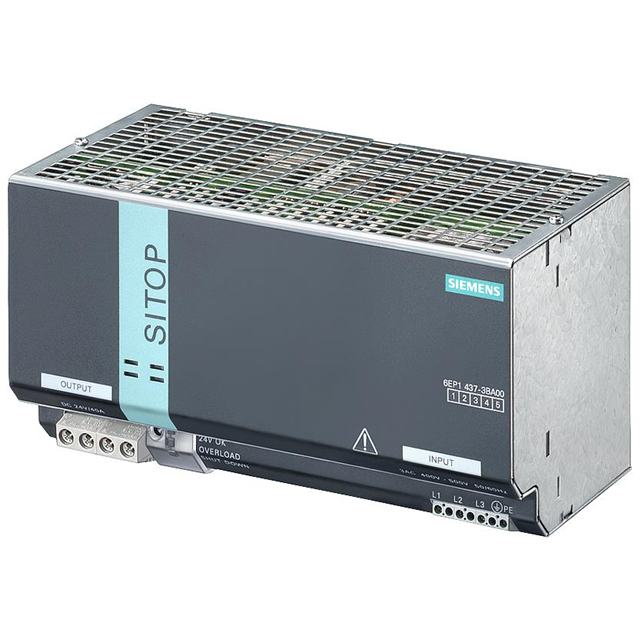

AC/DC DIN RAIL SUPPLY 24V
| Part | Number of Outputs | Input Type | Voltage - Output 1 | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Approval Agency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Applications | Features | Current - Output (Max) [Max] | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | 1 | AC | 24 V | 320 VAC | 550 VAC | CE CSA UL | 9.45 in | 240 mm | 125 mm | 4.92 in | 4.92 in | 125 mm | Industrial ITE (Commercial) | Adjustable Output IP20 | 40 A | 60950-1; UL 508 | 70 °C | 0 °C | 90 % |
Siemens | 1 | AC | 24 V | 320 VAC | 575 VAC | cCSAus CE CSA cULus UL | 9.45 in | 240 mm | 125 mm | 4.92 in | 4.92 in | 125 mm | Industrial ITE (Commercial) | Adjustable Output IP20 | 40 A | 60950-1; UL 508 | 70 °C | 0 °C | 90 % |
