T41115 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

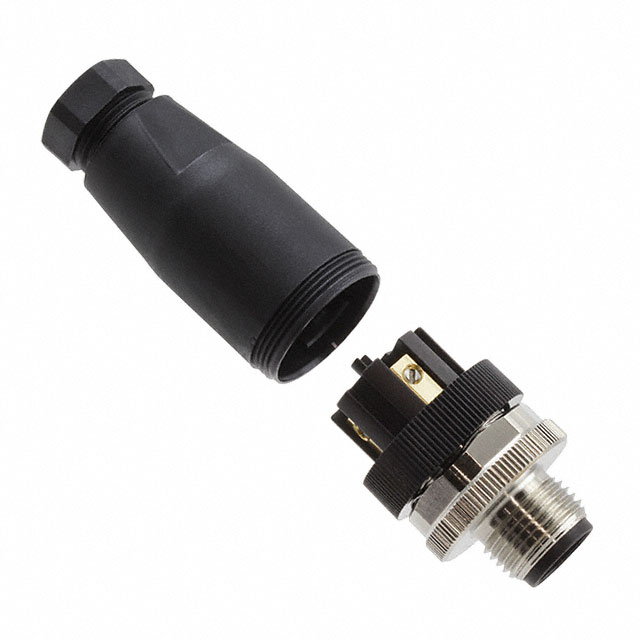

SENSOR CONNECTOR, PG7/4-6MM, M12, MALE, 4 POSITIONS, SCREW PIN, STRAIGHT CABLE MOUNT

Part	Applications	Backshell Material, Plating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material [custom]	Insert Material [custom]	Fastening Type	Color	Mounting Type	Orientation	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Shell Finish	Shell Size - Insert	Primary Material	Shielding	Number of Positions	Shell Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Voltage Rating	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
TE Connectivity AMP Connectors T4111501041-000	Industrial	Polybutylene Terephthalate (PBT) Glass Filled	Zinc Alloy	0.076 µm	3 µin	Nylon	Polyamide (PA)	Threaded	Black Silver	Free Hanging (In-Line)	D	0.157 in	0.236 in	6 mm	4 mm	Nickel	M12-4	Metal	Unshielded	4	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Gold
TE Connectivity AMP Connectors T4111512031-000	Industrial	Brass Nickel	Brass	0.076 µm	3 µin	Nylon	Polyamide (PA)	Threaded	Silver	Free Hanging (In-Line)	D	0.236 in	0.315 in	8 mm	6 mm	Nickel	M12-3	Metal	Shielded		Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Gold
TE Connectivity AMP Connectors T4111512032-000	Industrial	Brass Nickel	Brass			Nylon	Polyamide (PA)	Threaded	Silver	Free Hanging (In-Line)	D	0.236 in	0.315 in	8 mm	6 mm	Nickel	M12-3	Metal	Shielded		Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Silver	2.03 µm	80 µin
TE Connectivity AMP Connectors T4111502031-000	Industrial	Polybutylene Terephthalate (PBT) Glass Filled	Zinc Alloy	0.076 µm	3 µin	Nylon	Polyamide (PA)	Threaded	Black Silver	Free Hanging (In-Line)	D	0.236 in	0.315 in	8 mm	6 mm	Nickel	M12-3	Metal	Unshielded		Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Gold
TE Connectivity AMP Connectors T4111501042-000	Industrial	Polybutylene Terephthalate (PBT) Glass Filled	Brass			Nylon	Polyamide (PA)	Threaded	Black Silver	Free Hanging (In-Line)	D	0.157 in	0.236 in	6 mm	4 mm	Nickel	M12-4	Metal	Unshielded	4	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Silver	2.03 µm	80 µin
TE Connectivity AMP Connectors T4111511052-000	Industrial	Brass Nickel	Brass			Nylon	Polyamide (PA)	Threaded	Silver	Free Hanging (In-Line)	D	0.157 in	0.236 in	6 mm	4 mm	Nickel	M12-5	Metal	Shielded	5	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	60 VDC	4 A	Receptacle Male Pins	Silver	2.03 µm	80 µin

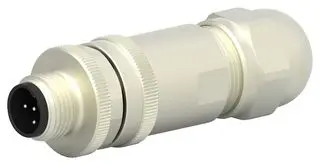

TE Connectivity AMP Connectors T4111511051-000	Industrial	Brass Nickel	Brass	0.076 µm	3 µin	Nylon	Polyamide (PA)	Threaded	Silver	Free Hanging (In-Line)	D	0.157 in	0.236 in	6 mm	4 mm	Nickel	M12-5	Metal	Shielded	5	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	60 VDC	4 A	Receptacle Male Pins	Gold
TE Connectivity AMP Connectors T4111501052-000	Industrial	Polybutylene Terephthalate (PBT) Glass Filled	Brass			Nylon	Polyamide (PA)	Threaded	Black Silver	Free Hanging (In-Line)	D	0.157 in	0.236 in	6 mm	4 mm	Nickel	M12-5	Metal	Unshielded	5	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	60 VDC	4 A	Receptacle Male Pins	Silver	2.03 µm	80 µin

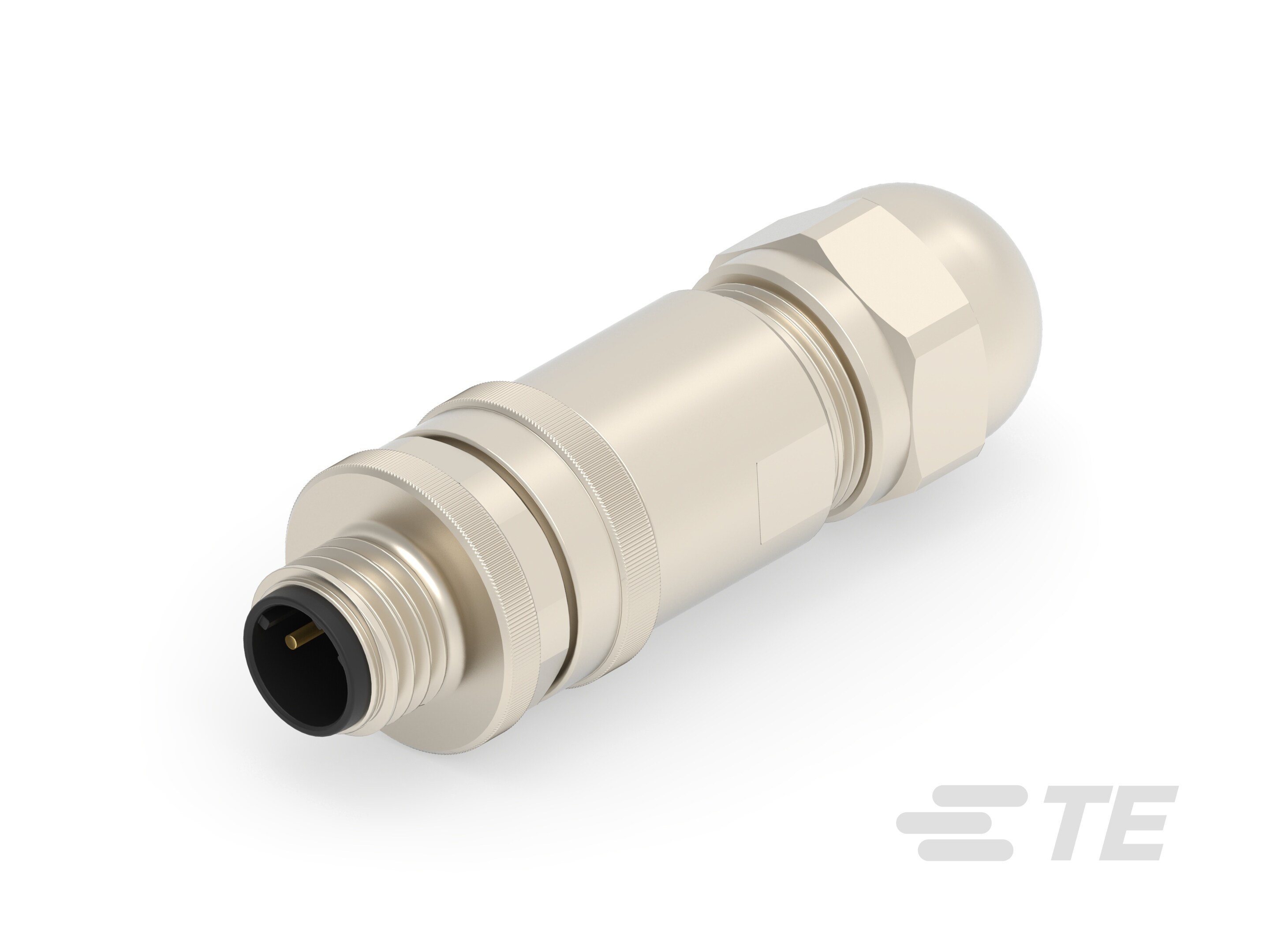

TE Connectivity AMP Connectors T4111512021-000	Industrial	Brass Nickel	Zinc Alloy	0.076 µm	3 µin	Nylon	Polyamide (PA)	Threaded	Silver	Free Hanging (In-Line)	D	0.236 in	0.315 in	8 mm	6 mm	Nickel	M12-2	Metal	Shielded	2	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Gold

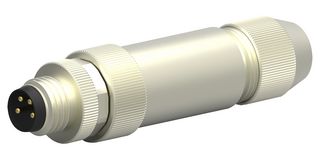

TE Connectivity AMP Connectors T4111512041-000	Industrial	Brass Nickel	Zinc Alloy	0.076 µm	3 µin	Nylon	Polyamide (PA)	Threaded	Silver	Free Hanging (In-Line)	D	0.236 in	0.315 in	8 mm	6 mm	Nickel	M12-4	Metal	Shielded	4	Brass	Screw	85 °C	-40 C	IP67 - Dust Tight Waterproof	Backshell	250 V	4 A	Receptacle Male Pins	Gold
