EMI814X Series

Common Mode Filter with ESD Protection

Catalog

Common Mode Filter with ESD Protection

Part	Current Rating (Max) [Max]	Features	Number of Lines	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Package / Case	DC Resistance (DCR) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]

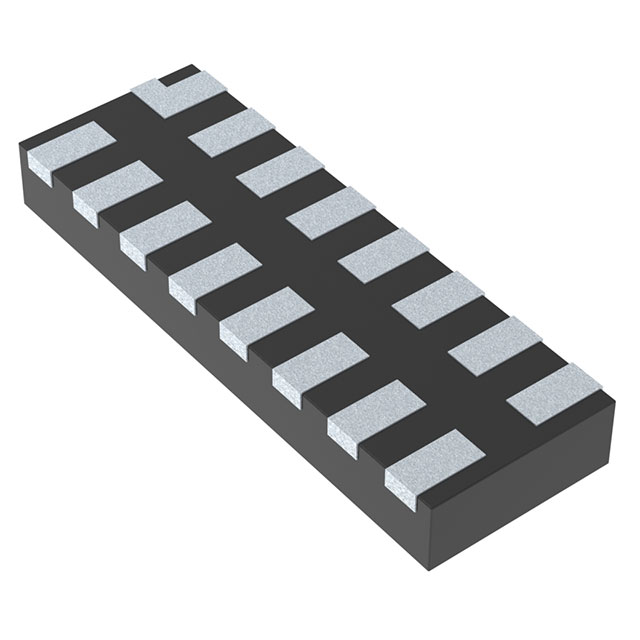

ON Semiconductor EMI8143MUTAG	100 mA	TVS Diode ESD Protection	6	0.5 mm	0.02 in	Surface Mount	16-XFDFN	6 Ohm	85 °C	-40 °C	3.5 mm	0.138 "	1.35 mm	0.053 in

Catalog

Common Mode Filter with ESD Protection

Key Features

• Total Insertion DMloss < 2.5dB at 2.5GHz

• Large Differential Mode Cutoff Frequency >5GHz

• High Common Mode Stop Band Attenuation >10dB at 500MHz, 15dB at 700MHz

• Low Channel Resistance 6.0 ohms

• Provides ESD Protection to IEC61000-4-2 Level 4, +/-15kV Contact

Description

The EMI814x is a family of Common Mode Filters (CMF) with integrated ESD protection. Differential signaling IO's can now have both common mode filtering and ESD protection in one package.
