745-120 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 120POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Read Out	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Number of Positions	Color	Contact Finish	Number of Positions/Bay/Row [custom]	Gender	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Mounting Type	Termination
EDAC Inc. 745-120-522-201	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit
EDAC Inc. 745-120-560-206	Polyester Thermoplastic	2	Cantilever Make Before Break	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit

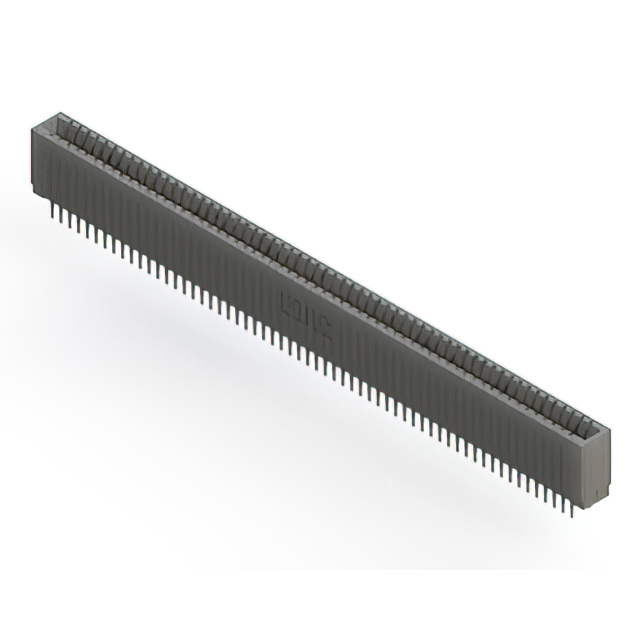

EDAC Inc. 745-120-525-201	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit
EDAC Inc. 745-120-541-201	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit Wire Wrap

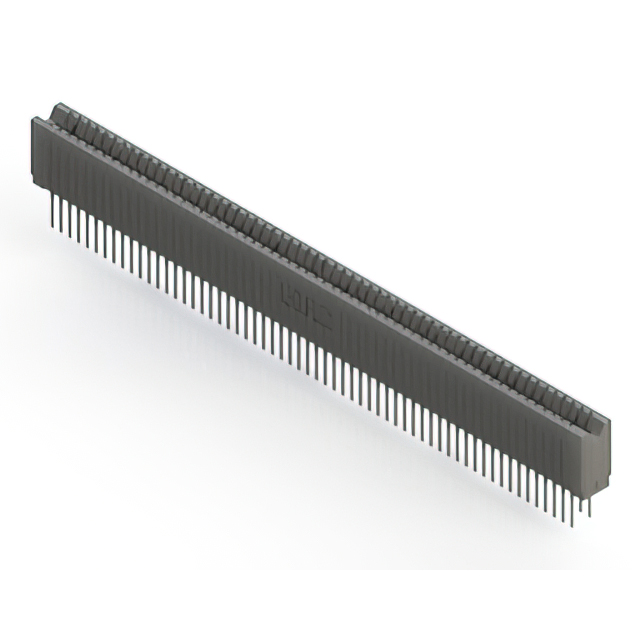

EDAC Inc. 745-120-522-206	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit
EDAC Inc. 745-120-541-206	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit Wire Wrap
EDAC Inc. 745-120-525-206	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit
EDAC Inc. 745-120-540-206	Polyester Thermoplastic	2	Cantilever	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit Wire Wrap
EDAC Inc. 745-120-560-201	Polyester Thermoplastic	2	Cantilever Make Before Break	Dual	Non Specified - Dual Edge	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	120	Black	Gold	60	Female	Copper Alloy	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	Press-Fit
