FAN1084 Series
Manufacturer: ON Semiconductor
Beta
⌘K

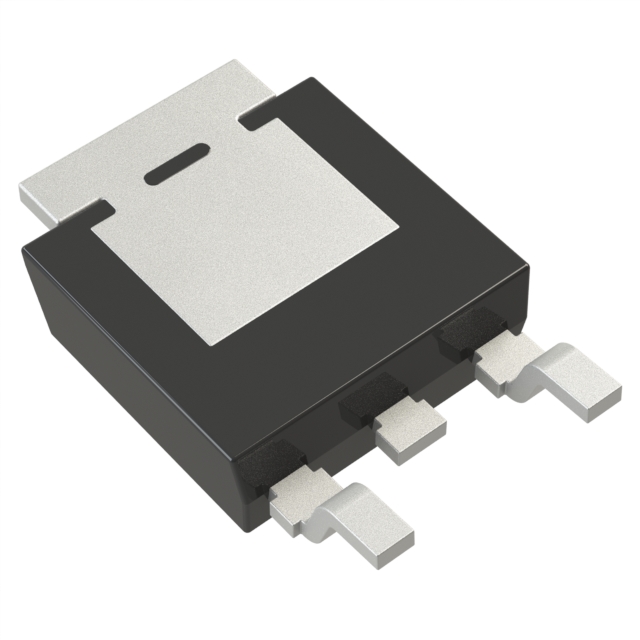

IC REG LIN POS ADJ 4.5A TO252AA
| Part | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage Dropout (Max) [Max] | Output Type | Number of Regulators | Current - Output | Output Configuration | Voltage - Output (Min/Fixed) | Protection Features | Current - Quiescent (Iq) | Supplier Device Package | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | 125 °C | 25 °C | 5.5 V | 7 V | 1.5 V | Adjustable | 1 | 4.5 A | Positive | 1.25 V | Over Temperature | 4 mA | TO-252AA | |
 ON Semiconductor | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | 125 °C | 25 °C | 7 V | 1.5 V | 1 | 4.5 A | Positive | 3.3 V | Over Temperature | 4 mA | TO-252AA | 1.81 mOhm | ||
ON Semiconductor | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | 125 °C | 25 °C | 7 V | 1.5 V | 1 | 4.5 A | Positive | 3.3 V | Over Temperature | 4 mA | TO-252 (DPAK) | 1.81 mOhm |
