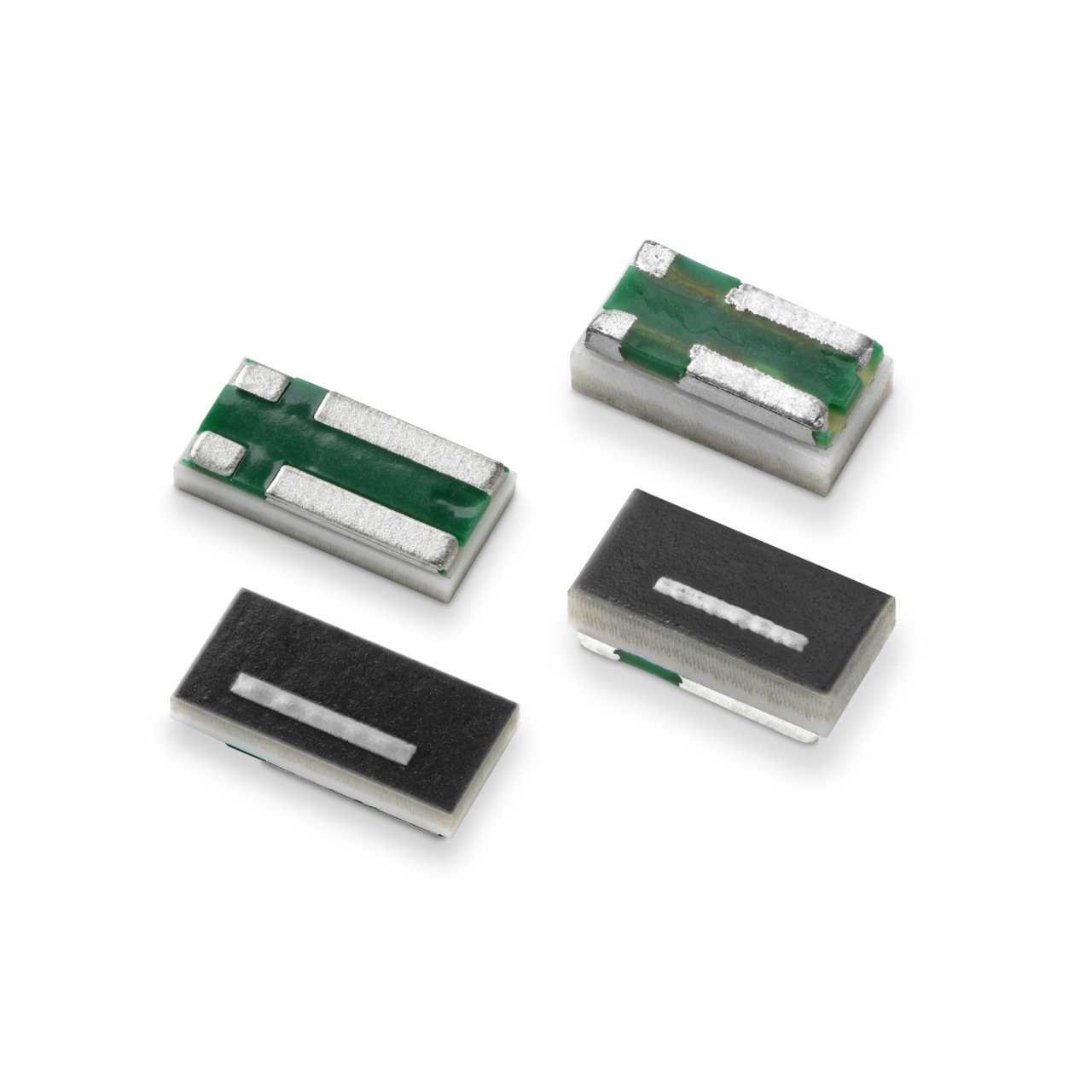

L4CC0306QLR024F Series

4T L4CC0306 0.33W 50ppm 24 mOhm ±1.0%

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4T L4CC0306 0.33W 50ppm 24 mOhm ±1.0%

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Supplier Device Package	Resistance	Temperature Coefficient	Number of Terminations	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Package / Case [custom]	Features
Littelfuse/Commercial Vehicle Products L4CC0306QLR024FNR	155 °C	-55 °C	0.333 W	0.3333333333333333 W	0306	24 mOhms	50 ppm/°C	4	0.026 in	0.65 mm	0.031 in	1.6 mm	0.8 mm	0.063 in	1 %	0306 Wide 0603 (1608 Metric)	Current Sense High Voltage

Catalog

4T L4CC0306 0.33W 50ppm 24 mOhm ±1.0%

Key Features

• Resistance range down to 0.5 mΩ

• Separate voltage sensing terminals

• Ceramic substrate

Description

Littelfuse L4CA/C Series Kelvin sensing, low resistance, high power chip resistors exhibit excellent performance in resistance, noise performance, surface heat distribution, and have a lower surface temperature.
