32994 Series

Catalog

CONN RING CIRC 10-12AWG #8 CRIMP

Part	Length - Overall [x]	Length - Overall [x]	Termination	Thickness	Thickness	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Mounting Type	Insulation	Stud/Tab Size	Contact Material	Features

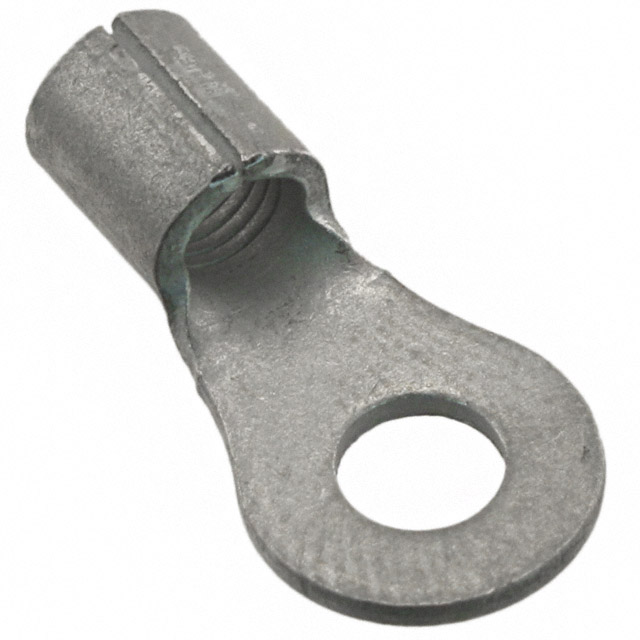

TE Connectivity Raychem Cable Protection 2-32994-1	19.43 mm	0.765 in	Crimp	0.99 mm	0.039 in	Circular	0.375 in	9.53 mm	12 AWG	10 AWG	Tin	Free Hanging (In-Line)	Non-Insulated	8 Stud	Copper	Brazed Seam Serrated Termination

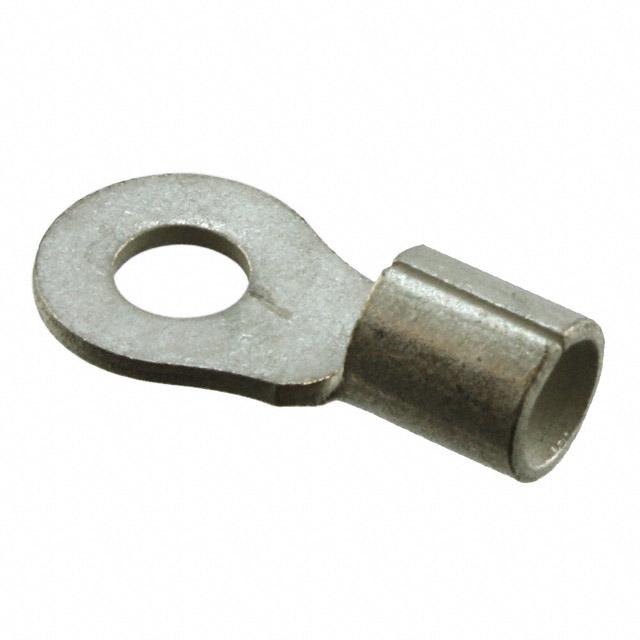

TE Connectivity Raychem Cable Protection 8-32994-2	19.43 mm	0.765 in	Crimp	0.99 mm	0.039 in	Circular	0.375 in	9.53 mm	12 AWG	10 AWG	Tin	Free Hanging (In-Line)	Non-Insulated	8 Stud	Copper	Brazed Seam Serrated Termination
