M33828 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

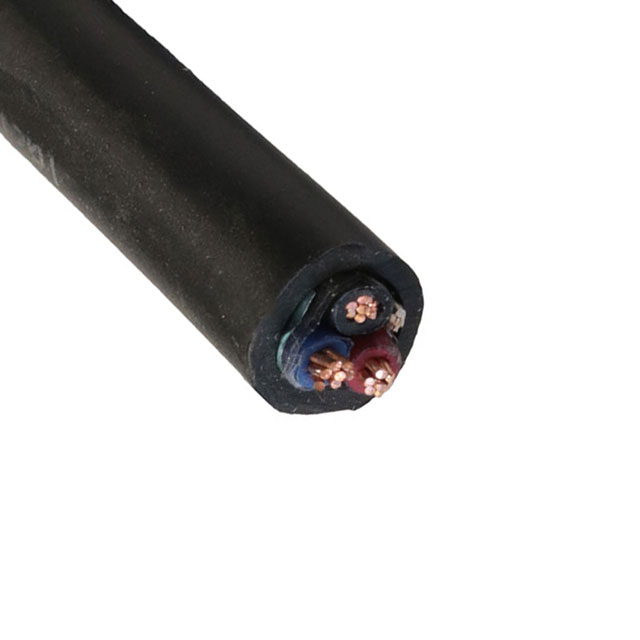

CABLE 3COND 16AWG BLACK SHLD
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Shield Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Conductor Material | Wire Gauge | Length [x] | Length [x] | Shield Coverage | Number of Conductors | Jacket (Insulation) Material | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 1.194 mm | 0.047 in | 8.05 mm | 0.317 in | Foil | Aluminum | Black | 7 | 0.0192 in | Multi-Conductor | Drain Wire | 90 °C | -25 °C | 600 V | Copper Bare | 16 AWG | 500 ' | 152.4 m | 100 % | 3 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 1.194 mm | 0.047 in | 8.05 mm | 0.317 in | Foil | Aluminum | Black | 7 | 0.0192 in | Multi-Conductor | Drain Wire | 90 °C | -25 °C | 600 V | Copper Bare | 16 AWG | 100 % | 3 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m |
