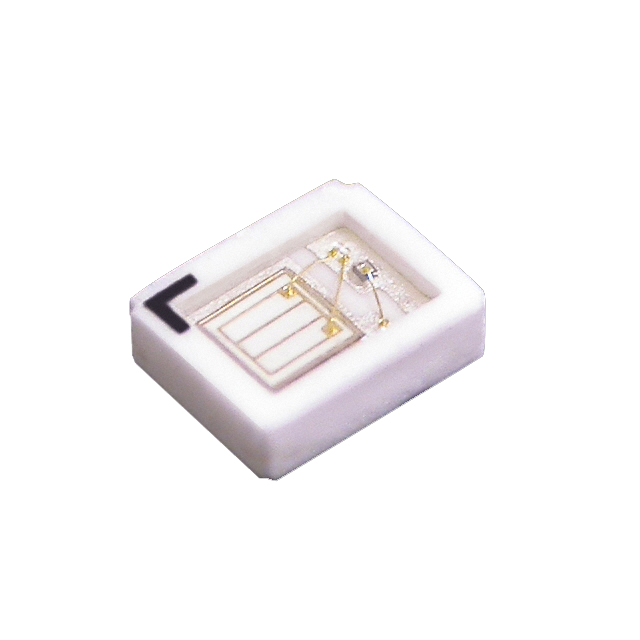

AT2520 Series

Catalog

LED RED 623NM SMD

Part	Thermal Resistance of Package	Current - Max [Max]	Mounting Type	Current - Test	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Color	Package / Case	Package / Case	Wavelength	Viewing Angle	Luminous Flux @ Current/Temperature
Kingbright AT2520SE9ZS	120 °C/W	250 mA	Surface Mount	250 mA	25 °C	2.5 mm	0.079 in	0.098 in	2 mm	CSMD	2.3 V	24 lm/W	Red	2520 Metric	1008	623 nm	130 °	14 lm
Kingbright AT2520QB10ZS	110 °C/W	250 mA	Surface Mount	250 mA	25 °C	2.5 mm	0.079 in	0.098 in	2 mm	CSMD	3.5 V	14 lm/W	Blue	2520 Metric	1008	458 nm	120 °	12 lm
Kingbright AT2520ZG10ZS	120 °C/W	250 mA	Surface Mount	250 mA	25 °C	2.5 mm	0.079 in	0.098 in	2 mm	CSMD	3.6 V	42 lm/W	Green	2520 Metric	1008	530 nm	120 °	38 lm
Kingbright AT2520SY9ZS	140 °C/W	250 mA	Surface Mount	250 mA	25 °C	2.5 mm	0.079 in	0.098 in	2 mm	CSMD	2.3 V	24 lm/W	Yellow	2520 Metric	1008	591 nm	130 °	14 lm
