EFB0812 Series

Catalog

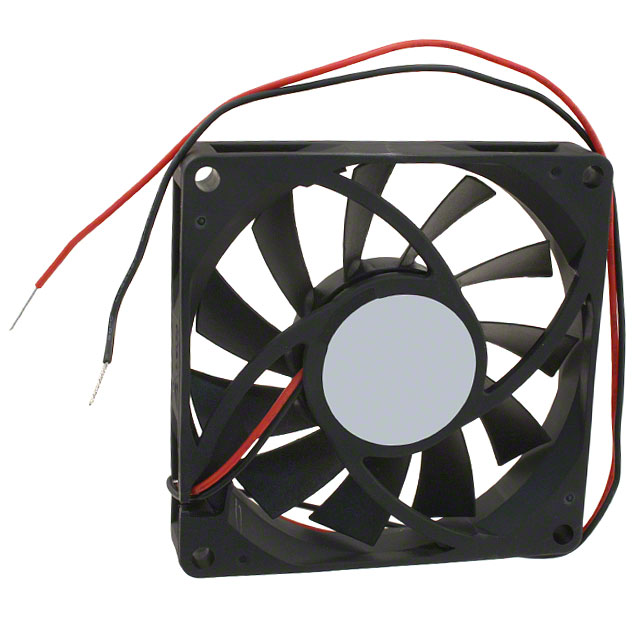

DC FAN AXIAL BALL BEARING 12V 5V TO 13.2V 48.8CFM 41DB 80 X 80 X 15MM

Part	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Power (Watts)	Static Pressure	Static Pressure	RPM	Air Flow	Air Flow	Noise	Weight	Weight	Bearing Type	Fan Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Termination	Features
Delta Electronics EFB0812HHB	Plastic	0.33 A	13.2 VDC	5 VDC	Plastic	70000 Hrs	80 mm	80 mm	12 VDC	3.96 W	0.171 in H2O	42.6 Pa	3800 RPM	48.8 CFM	1.37 m³/min	41 dB	67.13 g	0.148 lb	Ball	Tubeaxial	CE CSA UL VDE	70 °C	-10 °C	15 mm	2 Wire Leads
Delta Electronics EFB0812HHB-F00	Plastic	0.33 A	13.2 VDC	5 VDC	Plastic	70000 Hrs	80 mm	80 mm	12 VDC	3.96 W	0.171 in H2O	42.6 Pa	3800 RPM	48.8 CFM	1.37 m³/min	41 dB	67.13 g	0.148 lb	Ball	Tubeaxial	CE CSA UL VDE	70 °C	-10 °C	15 mm	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0812HB	Plastic	0.21 A	13.8 VDC	5 VDC	Plastic		80 mm	80 mm	12 VDC	2.52 W	0.134 in H2O	33.5 Pa	3300 RPM			37 dB	67.13 g	0.148 lb	Ball	Tubeaxial	CE CSA UL VDE			15 mm	2 Wire Leads
