GSM25B07 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

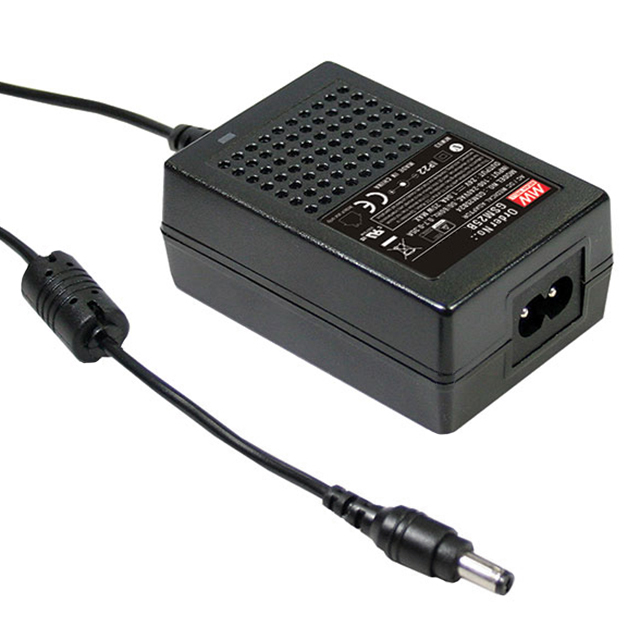

AC/DC DESKTOP ADAPTER 7.5V 22W
| Part | Form | Approval Agency | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Cord Length | Cord Length | Efficiency | Input Type | Polarization | Input Connector | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Applications | Voltage - Output | Region Utilized | Current - Output (Max) [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Output Connector [x] | Output Connector [diameter] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Desktop (Class II) | CB CE cRUus TUV | 100 mW | -25 °C | 60 °C | 1.2 m | 47.2 in | Level V | Cord (Sold Separately) | Positive Center | IEC 320-C8 | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | Medical | 7.5 V | International | 2.93 A | 80 VAC | 264 VAC | 22 W | 11 mm | 2.1 mm 5.5 mm | Barrel Plug |
