PX0598 Series

Catalog

CONN POWER M 3 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT BULK

Part	Connector Style	Panel Thickness	Panel Thickness	Termination	Termination	Termination	Material Flammability Rating	Filter Type	Connector Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Mounting Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]

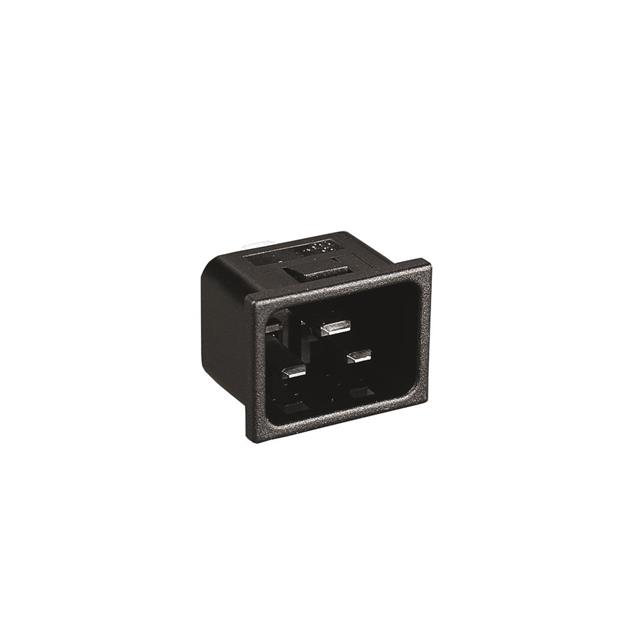

BULGIN LIMITED PX0598/15/63	IEC 320-C20	1.5 mm	0.059 in	6.3 mm	Quick Connect	0.25 "	UL94 V-0	Unfiltered - Commercial	Receptacle Male Blades	16 A	250 VAC	Panel Mount Snap-In	CSA ENEC UL VDE	32.3 mm	24.3 mm
BULGIN LIMITED PX0598/30/63	IEC 320-C20	3 mm	0.118 "	6.3 mm	Quick Connect	0.25 "	UL94 V-0	Unfiltered - Commercial	Receptacle Male Blades	16 A	250 VAC	Panel Mount Snap-In	CSA ENEC UL VDE	32.3 mm	24.3 mm
BULGIN LIMITED PX0598/15/48	IEC 320-C20	1.5 mm	0.059 in	4.8 mm	Quick Connect	0.189 "	UL94 V-0	Unfiltered - Commercial	Receptacle Male Blades	16 A	250 VAC	Panel Mount Snap-In	CSA ENEC UL VDE	32.3 mm	24.3 mm
