860-L03 Series
Manufacturer: NorComp Inc.
Beta
⌘K

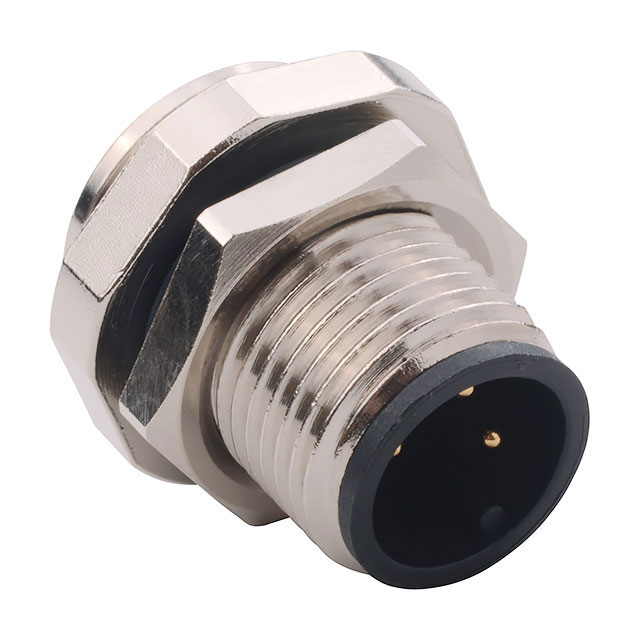

CONN RCPT MALE 3POS GOLD SOLDER
| Part | Connector Type | Contact Finish - Mating | Contact Material | Orientation | Fastening Type | Shielding | Termination | Shell Material | Shell Size - Insert | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Ingress Protection | Mounting Feature | Insert Material | Applications | Voltage Rating | Primary Material | Mounting Type | Color | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Receptacle Male Pins | Gold | Brass | A | Threaded | Shielded | Solder | Brass | M12-3 | 4 A | UL94 V-0 | 85 °C | -40 C | Nickel | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Polybutylene Terephthalate (PBT) | Industrial Medical | 250 V | Metal | Panel Mount Through Hole | Silver | Flash |
