1181/30C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

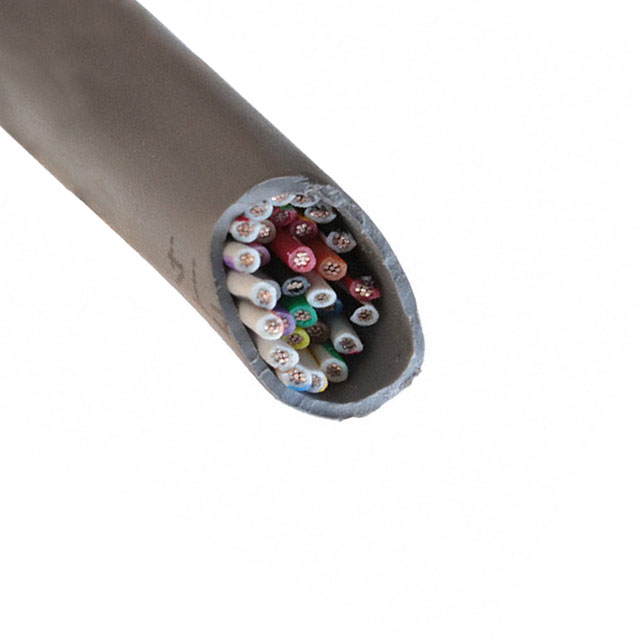

CABLE 30COND 22AWG SLATE 1000'
| Part | Wire Gauge | Usage | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Cable Type | Jacket Color | Length | Length | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 22 AWG | Communication Control | 30 | 0.385 in | 9.78 mm | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Slate | 304.8 m | 1000 ft | 300 VDC | 0.813 mm | 0.032 in | Copper Tinned |
