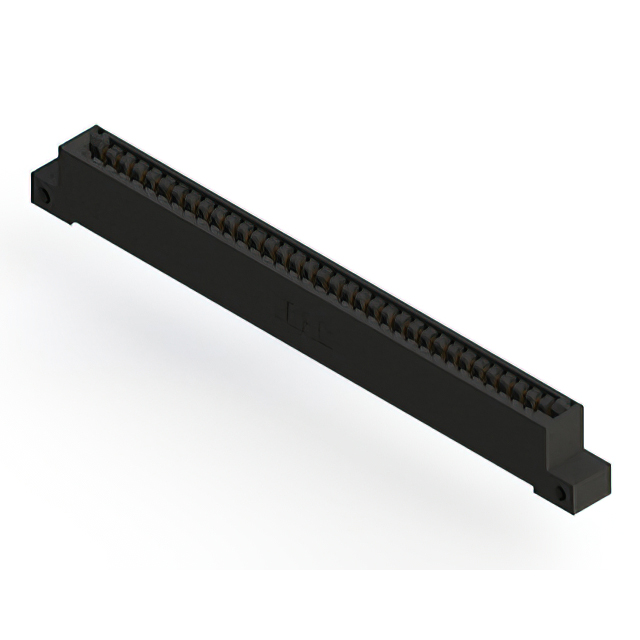

896-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 35POS 0.125
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Termination | Pitch | Pitch | Flange Feature | Number of Positions/Bay/Row | Gender | Number of Positions | Read Out | Contact Finish | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Color | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | 4-40 Threaded Insert Top Mount Opening | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | M3 Threaded Insert Top Mount Opening | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 3.18 mm | 0.125 in | Side Mount Opening Unthreaded | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | 0.128 " | 3.25 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | M3 Threaded Insert Top Mount Opening | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | 0.156 " | 3.96 mm |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Right Angle Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.18 mm | 0.125 in | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin | Through Hole | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 3.18 mm | 0.125 in | Floating Bobbin Flush Mount | 35 | Female | 35 | Single | Gold | Cantilever | 125 °C | -40 C | 1 | Black | Non Specified - Single Edge | 0.116 " | 2.95 mm |
