SR4L034 Series

Manufacturer: Antenova

Catalog

RF ANT 829MHZ/1.94GHZ PCB TRACE

Part	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Termination	Applications	Frequency Group	Antenna Type	Number of Bands	Mounting Type	Return Loss	Frequency (Center/Band)	VSWR	Supplied Contents	For Use With/Related Products	Frequency [Min]	Frequency [Max]	Contents	Utilized IC / Part	Type

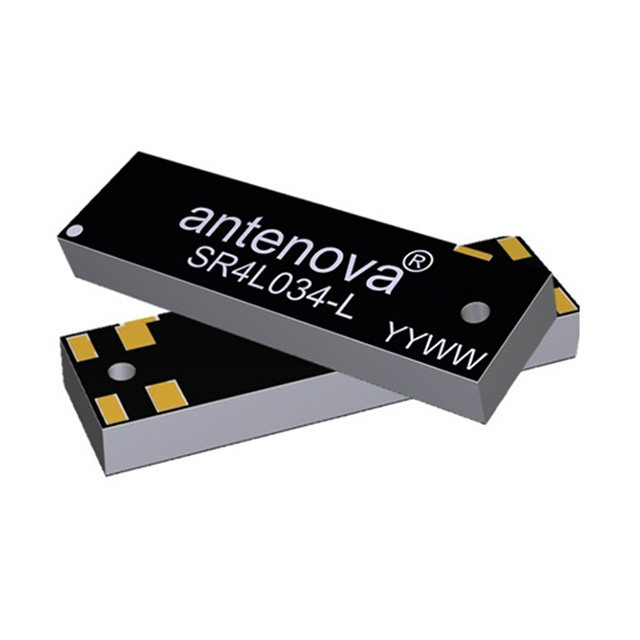

Antenova SR4L034-L	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	Cellular	0.13 in	3.3 mm	Solder	3G 4G CDMA DCS EDGE GPRS GSM HSPA IMT LTE PCS UMTS WCDMA	Wide Band	PCB Trace	4	Surface Mount	-7 dB -6.6 dB -6 dB -5.1 dB -4.9 dB	1.94 GHz 2.35 GHz 2.595 GHz 829 MHz	2.5 2.8 3.5 3.7

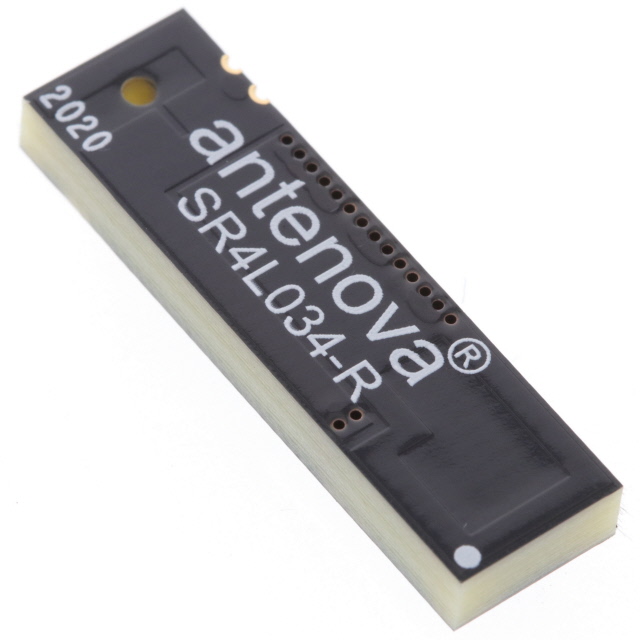

Antenova SR4L034-R	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	Cellular	0.13 in	3.3 mm	Solder	3G 4G CDMA DCS EDGE GPRS GSM HSPA IMT LTE PCS UMTS WCDMA	Wide Band	PCB Trace	4	Surface Mount	-7 dB -6.6 dB -6 dB -5.1 dB -4.9 dB	1.94 GHz 2.35 GHz 2.595 GHz 829 MHz	2.5 2.8 3.5 3.7
Antenova SR4L034-EVB-4															Board(s)	SR4L034	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz	2.17 GHz 2.4 GHz 960 MHz 2700 MHz	Board(s)	SR4L034	Antenna
