746-078 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Type	Contact Finish	Contact Material	Card Type	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Read Out	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 746-078-545-606	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-527-606	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-540-606	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-541-206	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-525-601	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-540-201	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-553-601	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-541-601	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-078-540-206	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm

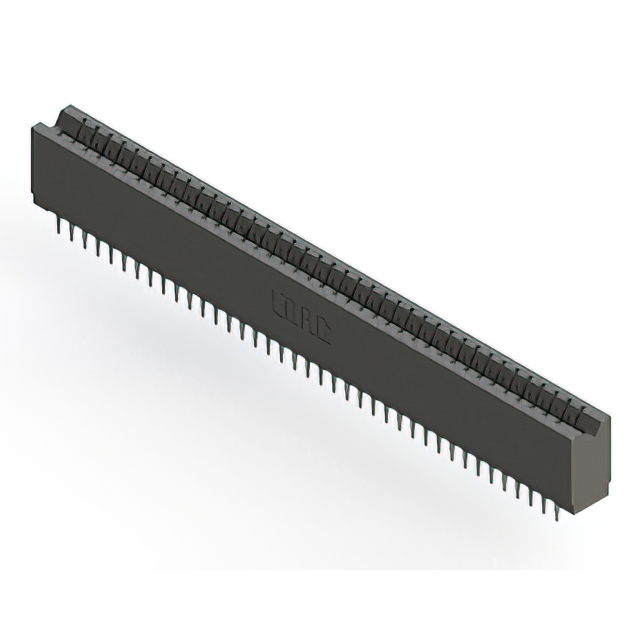

EDAC Inc. 746-078-520-206	Polyester Thermoplastic	2	3.18 mm	0.125 in	-40 C	105 ░C	78	Black	2	39	Cantilever	Gold	Copper Alloy	Non Specified - Dual Edge	Press-Fit	Female	30 Áin	0.76 Ám	Through Hole	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm
