EH12NMB2 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

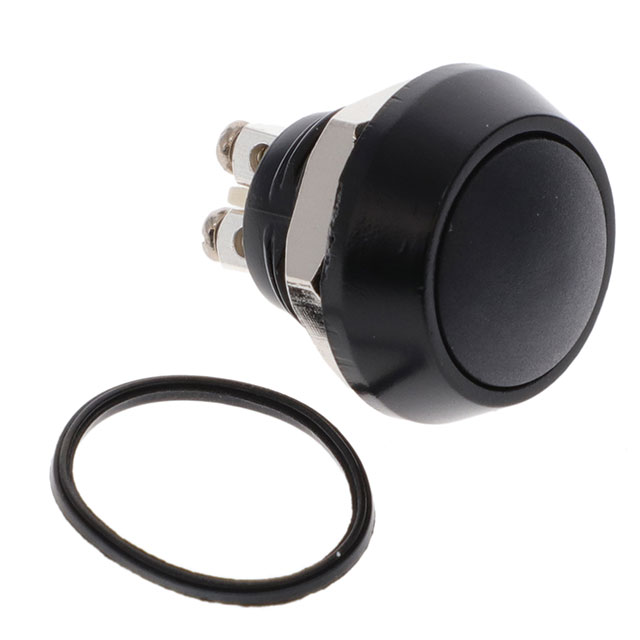

SWITCH PB SPST-NO 2A 48V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Actuator Marking | Termination Style | Actuator Type | Panel Cutout Dimensions [diameter] | Type | Circuit | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Ingress Protection | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 200000 Cycles | 500000 Cycles | -20 ░C | 70 °C | Black | No Marking | Screw Terminal | Button Round | 12 mm | Anti-Vandal | SPST-NO | 48 V | Panel Mount Front | 2 A | IP67 - Dust Tight Waterproof | Off-Mom |
