TXR40SJ00 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

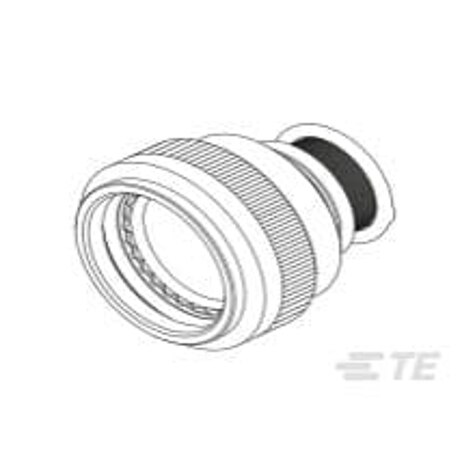

CONN BACKSHELL ADPT SZ25 J M37
| Part | Includes | For Use With/Related Products | Type | Cable Exit | Material | Thread Size | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shielding | Ingress Protection | Plating | Shell Size - Insert | Shell Size - Insert | Features | Diameter - Outside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M37x1 | 43.5 mm | 1.713 in | Shielded | Environment Resistant | Passivated | J | 25 | Tinel Lock | |
TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M31x1 | 37 mm | 1.457 in | Shielded | Environment Resistant | Passivated | G | 21 | Tinel Lock | |
TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M28x1 | 1.398 " 35.5 mm | Shielded | Environment Resistant | Passivated | F | 19 | Tinel Lock | ||
TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M28x1 | 1.398 " 35.5 mm | Shielded | Environment Resistant | Passivated | F | 19 | Tinel Lock | ||
TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M37x1 | 43.5 mm | 1.713 in | Shielded | Environment Resistant | Passivated | J | 25 | Tinel Lock | |
TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M15x1 | 21 mm | 0.827 in | Shielded | Environment Resistant | Passivated | B | 11 | Tinel Lock | |
TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M18x1 | 0.965 in | Shielded | Environment Resistant | Passivated | C | 13 | Tinel Lock | 24.5 mm | |
 TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M25x1 | 32.49 mm | 1.279 " | Shielded | Environment Resistant | Passivated | E | 17 | Tinel Lock | |
 TE Connectivity AMP Connectors | 1 Braid 1 O-Ring 1 Tinel Ring 4 pcs - 1 Backshell | MIL-DTL-38999 Series III IV | Backshell Heat Shrink Adapter | 180 ° | Stainless Steel | M31x1 | 37 mm | 1.457 in | Shielded | Environment Resistant | Passivated | G | 21 | Tinel Lock |
