T 3475 Series

Catalog

CONN PLUG HSNG MALE 7POS INLINE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insert Material	Note	Mounting Type	Contact Size	Housing Color	Material Flammability Rating	Type	Fastening Type	Shielding	Shell Size - Insert	Number of Positions	Connector Type	Orientation	Shell Finish	Contact Type	Shell Material	Features	Ingress Protection	Voltage Rating	Primary Material	Contact Finish - Mating	Current Rating (Amps)	Color

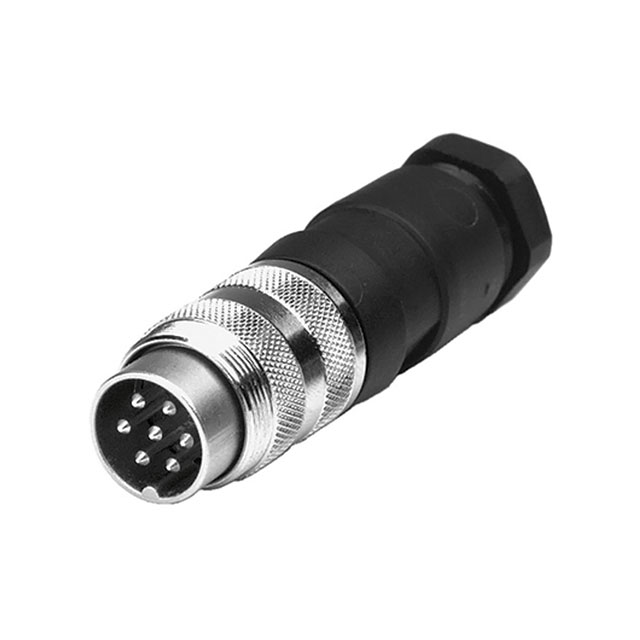

Amphenol Tuchel Industrial T 3475 552	-40 C	100 °C	Circular	Thermoplastic	Contacts Not Included	Free Hanging (In-Line)	1.5 mm	Black Silver	UL94 V-0	For Male Pins	Threaded	Shielded	M16-7	7	Plug Housing	Keyed	Nickel	Crimp	Die Cast	Backshell Cable Clamp Coupling Nut	IP40
Amphenol Tuchel Industrial T 3475 004	-40 C	100 °C				Free Hanging (In-Line)					Threaded	Shielded	M16-7	7	Plug Male Pins	Keyed	Nickel		Die Cast	Cable Clamp Strain Relief	IP40	250 V	Metal	Silver	7 A	Silver
Amphenol Tuchel Industrial T 3475 028	-40 C	100 °C				Free Hanging (In-Line)					Threaded	Shielded	M16-7	7	Plug Male Pins	Keyed	Nickel		Die Cast	Cable Clamp Strain Relief	IP40	250 V	Metal	Gold	7 A	Silver
Amphenol Tuchel Industrial T 3475 013	-40 C	100 °C				Free Hanging (In-Line)					Threaded	Shielded	M16-7	7	Plug Male Pins	Keyed	Nickel		Die Cast	Strain Relief	IP40	250 V	Metal	Silver	7 A	Silver
