CXS35 Series
Manufacturer: Panduit Corp
Beta
⌘K

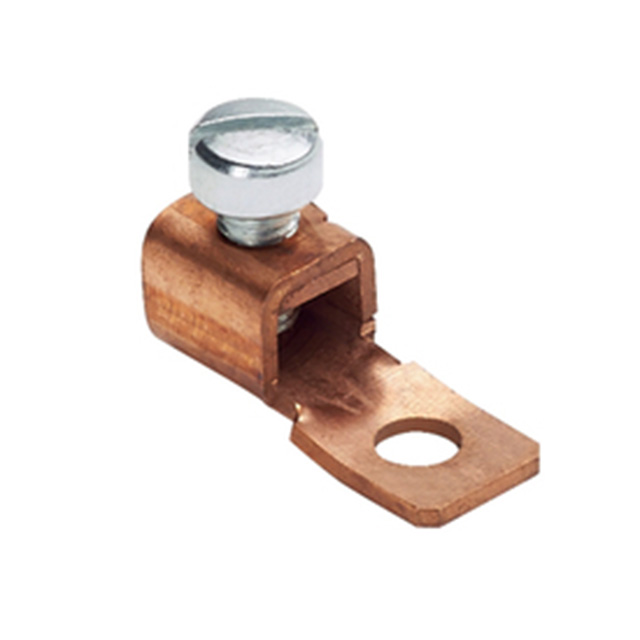

COPPER MECHANICAL LUG, 1 HOLE, 1 BARREL, ROHS COMPLIANT: YES
| Part | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Features | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Style | Mounting Type | Stud/Tab Size | Terminal Type | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Copper | 14 AWG | 6 AWG | With Screw | 1.27 mm | 0.05 " | 27.43 mm | 1.08 in | Screw | Single Stud Hole | Free Hanging (In-Line) | 3/16 | Lug Grounding | Non-Insulated | 9.65 mm | 0.38 in | |
 Panduit Corp | Copper | 14 AWG | 6 AWG | With Screw | 1.27 mm | 0.05 " | 27.43 mm | 1.08 in | Screw | Single Stud Hole | Free Hanging (In-Line) | 3/16 | Lug Grounding | Non-Insulated | 9.65 mm | 0.38 in | Tin |
