SC86730 Series

Catalog

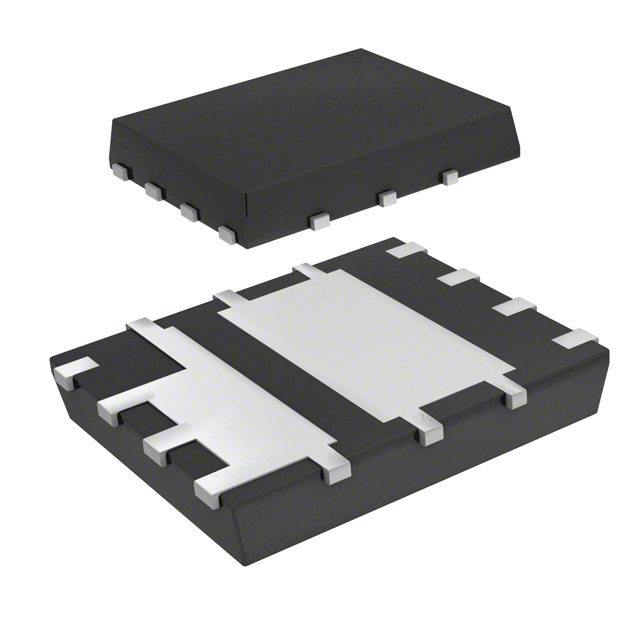

MOSFET 2N-CH 30V 16A/40A 8-HSO

Part	Configuration	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	FET Feature	Mounting Type	Vgs(th) (Max) @ Id	Technology	Power - Max	Package / Case	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)
Panasonic Electronic Components SC8673010L	2 N-Channel (Dual) Asymmetrical	6.3 nC	-40 °C	85 °C	16 A 40 A	Logic Level Gate	Surface Mount	3 V	MOSFET (Metal Oxide)	1.7 W 2.5 W	8-PowerSMD Flat Leads	10 mOhm	30 V
