M0220SD Series

Catalog

MODULE VF CHAR 2X20 5.34MM

Part	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Interface	Format [y]	Format [x]	Operating Temperature [Max]	Operating Temperature [Min]	Display Format [x]	Display Format [y]	Character Size [y]	Character Size [z]	Display Type	Controller Type	Viewing Area [x]	Viewing Area [y]	Voltage - Supply [Max]	Voltage - Supply [Min]

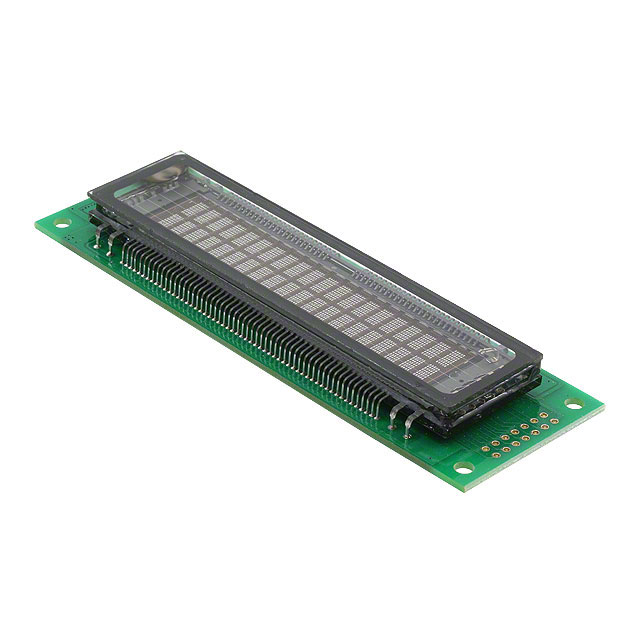

Newhaven Display Intl M0220SD-202SDAR1	116 mm	17.5 mm	37 mm	Parallel/Serial	8 Dots	5 Dots	85 °C	-40 C	20	2	2.35 mm	5.34 mm	Character	PT6314	70.8 mm	11.5 mm

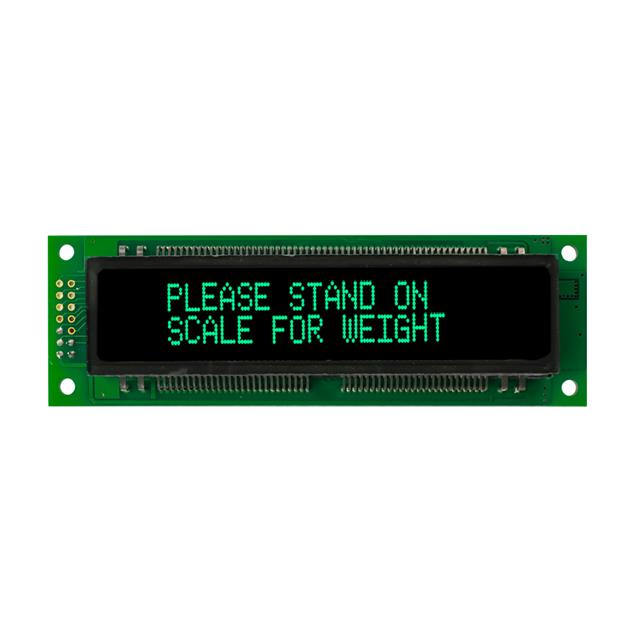

Newhaven Display Intl M0220SD-202SDAR1-S	116 mm	9.1 mm	37 mm	Parallel/Serial	8 Dots	5 Dots	85 °C	-40 C	20	2	2.35 mm	5.34 mm	Character	PT6314			5.5 V	4.5 V

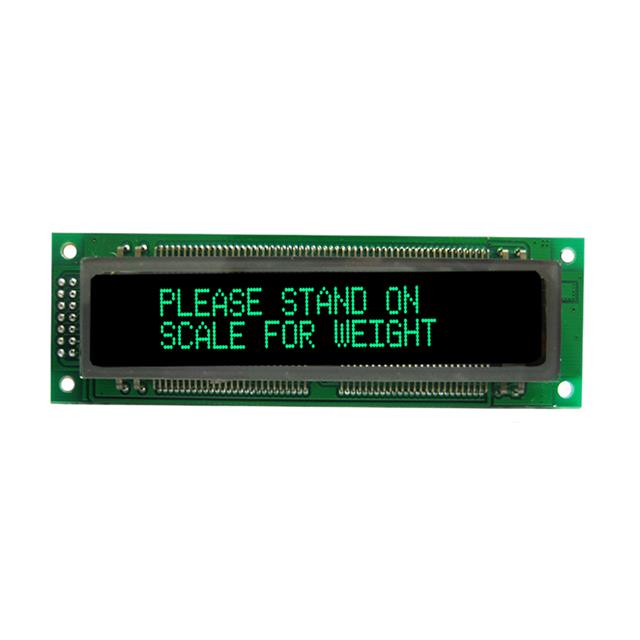

Newhaven Display Intl M0220SD-202SDAR1-1G	116 mm	17.5 mm	37 mm	Parallel/Serial	8 Dots	5 Dots	85 °C	-40 C	20	2	2.35 mm	5.34 mm	Character	PT6314	70.8 mm	11.5 mm	5.5 V	4.5 V
