EX-AR Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Release Force | Overtravel | Switch Function | Voltage Rating - DC | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage Rating - AC | Current Rating (Amps) | Actuator Type | Differential Travel | Differential Travel | Mounting Type | Pretravel | Pretravel | Operating Force [Max] | Operating Force [Min] | Circuit | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

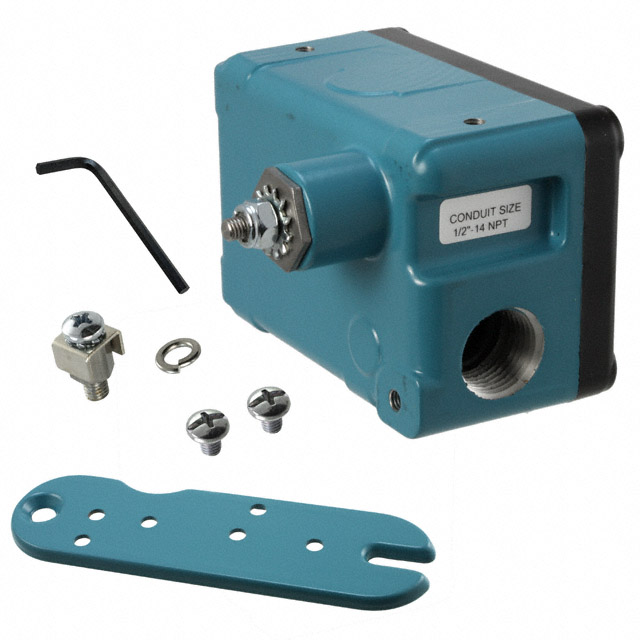

 Honeywell Sensing and Productivity Solutions | 4.5 gfm | 90 ° | On-Mom | 125 VDC | Screw Terminal | -40 °C | 71 °C | Explosion Proof | 125 V | 15 A 500 mA | Side Rotary - No Lever | 0.007 in | 0.18 mm | Chassis Mount | 0.219 in | 5.6 mm | 23 gfm | 9.001 gfm | SPDT | |

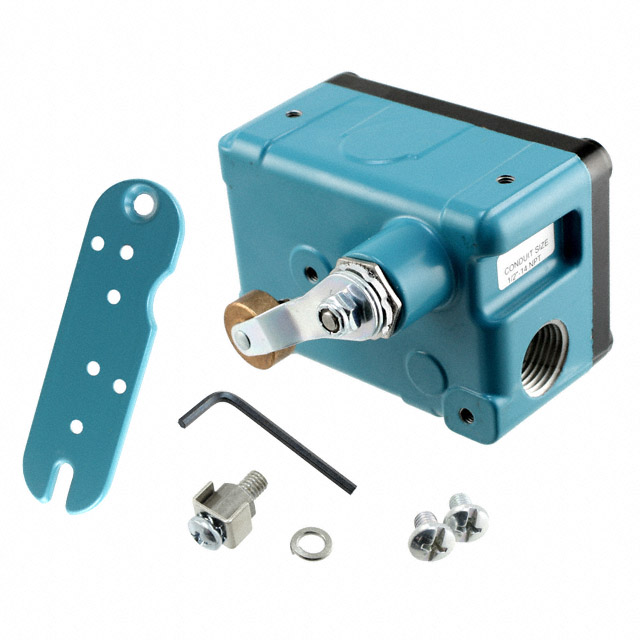

Honeywell Sensing and Productivity Solutions | 90 ° | On-Mom | 125 VDC | Screw Terminal | -40 °C | 71 °C | Explosion Proof | 125 V | 15 A 500 mA | Roller Side Rotary | 0.007 in | 0.18 mm | Chassis Mount | 0.219 in | 5.6 mm | 567 gf | 227 gf | SPDT | ||
Honeywell Sensing and Productivity Solutions | 177 gf | 90 ° | On-Mom | 125 VDC | Screw Terminal | 125 V | 5 A 500 mA | Side Rotary - No Lever | 0.25 ° | Chassis Mount | SPDT | |||||||||
 Honeywell Sensing and Productivity Solutions | 25 ° | On-Mom | 125 VDC | Screw Terminal | -40 °C | 71 °C | Explosion Proof | 125 V | 15 A 500 mA | Roller Side Rotary | 0.007 in | 0.18 mm | Chassis Mount | 0.065 in | 1.65 mm | SPDT | 1134 gf | |||
Honeywell Sensing and Productivity Solutions | 113 gf | 90 ° | On-Mom | 125 VDC | Screw Terminal | 125 V | 15 A 500 mA | 14 ° | Chassis Mount | 567 gf | 227 gf | SPDT |
