BFB1248 Series

Catalog

FAN BLOWER 120X32MM 48VDC WIRE

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Material - Frame	Air Flow	Air Flow	Voltage - Rated	Noise	Fan Type	Static Pressure	Static Pressure	Termination	Approval Agency	Width [y]	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	RPM	Features	Power (Watts)	Bearing Type

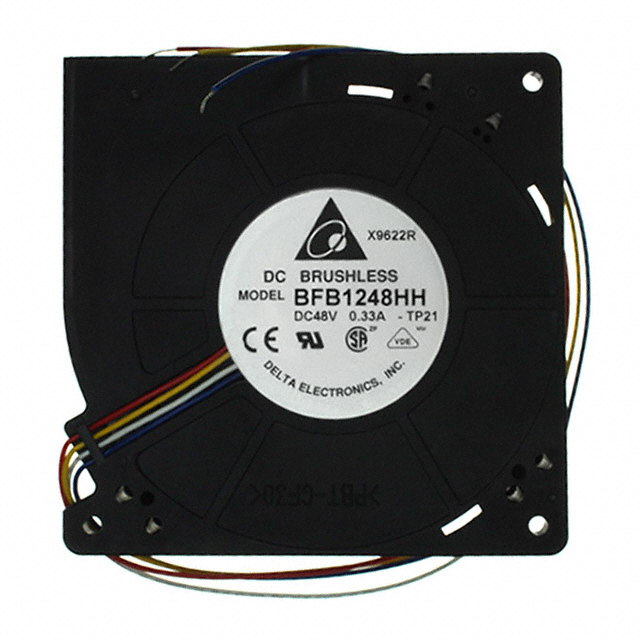

Delta Electronics BFB1248HH-TP21	0.25 A	36 VDC	60 V	Plastic	70000 Hrs	Plastic	0.988 mł/min	35.3 CFM	48 VDC	54 dB	Blower	245.1 Pa	0.984 in H2O	4 Wire Leads	CE CSA UL VDE	32 mm	230.42 g	0.508 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	2800 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 W	Ball
Delta Electronics BFB1248GH-A	800 mA	24 VDC	53 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.69 m³/min	60.4 CFM	48 VDC	65 dB	Blower	1019.8 Pa	4.094 in H2O	2 Wire Leads	CE CSA UL VDE	32 mm	299.82 g	0.661 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	4400 RPM		38.4 W	Ball

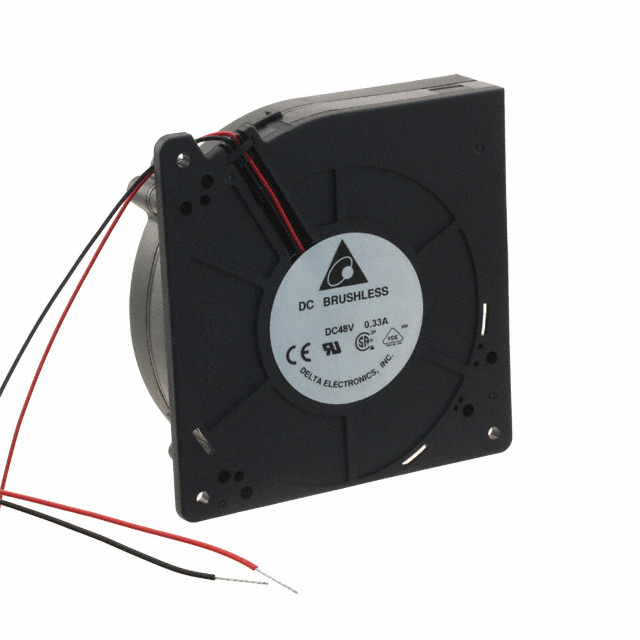

Delta Electronics BFB1248HH	0.22 A	28 V	56 VDC	Plastic	40 °C 50000 Hrs	Plastic	0.988 mł/min	35.3 CFM	48 VDC	54 dB	Blower	245.1 Pa	0.984 in H2O	2 Wire Leads	CE CSA UL VDE	32 mm	230.42 g	0.508 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	2800 RPM		10.56 W	Ball
Delta Electronics BFB1248HH-F00	0.22 A	28 V	56 VDC	Plastic	40 °C 50000 Hrs	Plastic	0.988 mł/min	35.3 CFM	48 VDC	54 dB	Blower	245.1 Pa	0.984 in H2O	3 Wire Leads	CE CSA UL VDE	32 mm	230.42 g	0.508 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	2800 RPM	Locked Rotor Protection Speed Sensor (Tach)	10.56 W	Ball

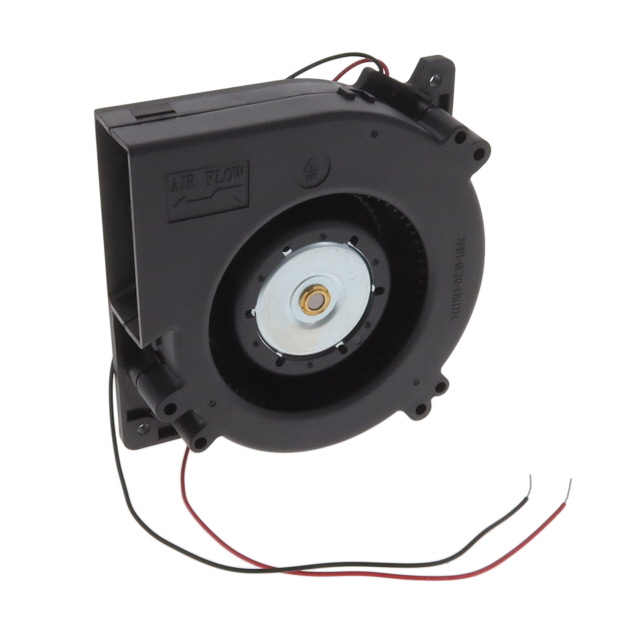

Delta Electronics BFB1248VH-A	0.37 A	24 VDC	56 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.19 mł/min	42.5 CFM	48 VDC	57 dB	Blower	460.3 Pa	1.848 in H2O	2 Wire Leads	CE CSA UL VDE	32 mm	299.82 g	0.661 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	3100 RPM		17.76 W	Ball

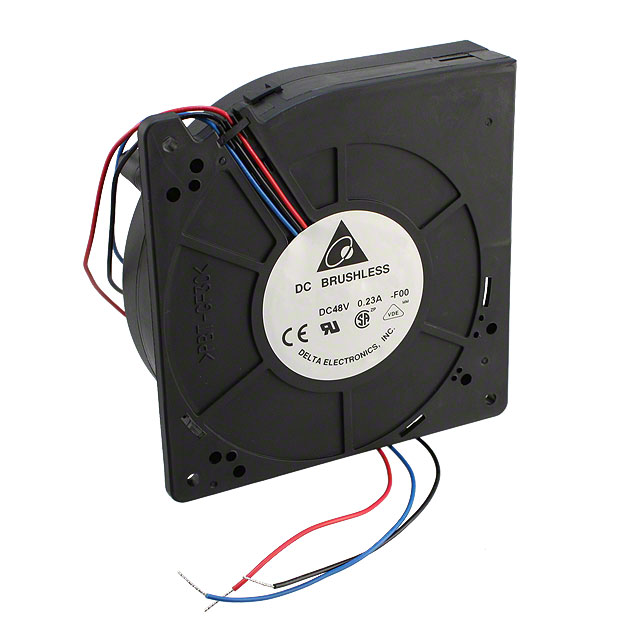

Delta Electronics BFB1248H-F00	150 mA	28 V	56 VDC	Plastic	40 °C 50000 Hrs	Plastic	0.879 m³/min	31.4 CFM	48 VDC	51 dB(A)	Blower	186.3 Pa	0.748 in H2O	3 Wire Leads	CE CSA UL VDE	32 mm	230.42 g	0.508 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	2500 RPM	Locked Rotor Protection Speed Sensor (Tach)	7.2 W	Ball
Delta Electronics BFB1248HH-R00	0.22 A	28 V	56 VDC	Plastic	40 °C 50000 Hrs	Plastic	0.988 mł/min	35.3 CFM	48 VDC	54 dB	Blower	245.1 Pa	0.984 in H2O	3 Wire Leads	CE CSA UL VDE	32 mm	230.42 g	0.508 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	2800 RPM	Locked Rotor Sensor	10.56 W	Ball

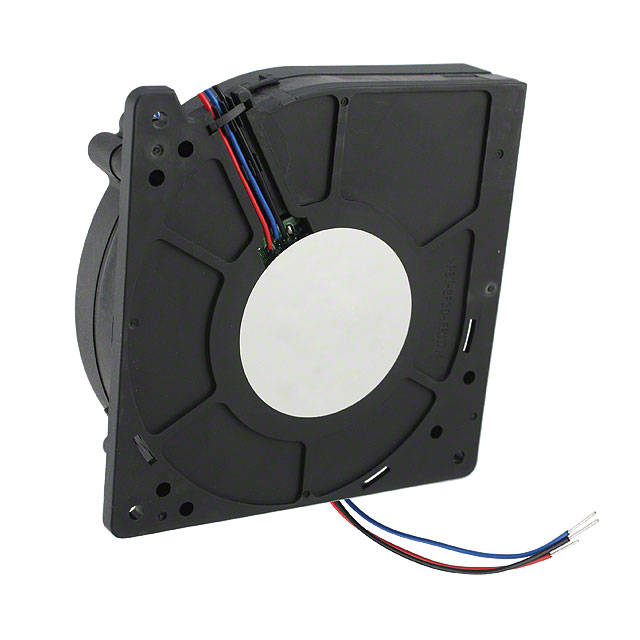

Delta Electronics BFB1248GH-AF00	800 mA	24 VDC	53 VDC	Plastic	40 °C 50000 Hrs	Plastic	1.69 m³/min	60.4 CFM	48 VDC	65 dB	Blower	1019.8 Pa	4.094 in H2O	3 Wire Leads	CE CSA UL VDE	32 mm	299.82 g	0.661 lb	-10 °C	60 °C	Square/Rounded	120 mm	120 mm	4400 RPM	Locked Rotor Protection Speed Sensor (Tach)	38.4 W	Ball
