APGF1011 Series
Manufacturer: Kingbright
Beta
⌘K

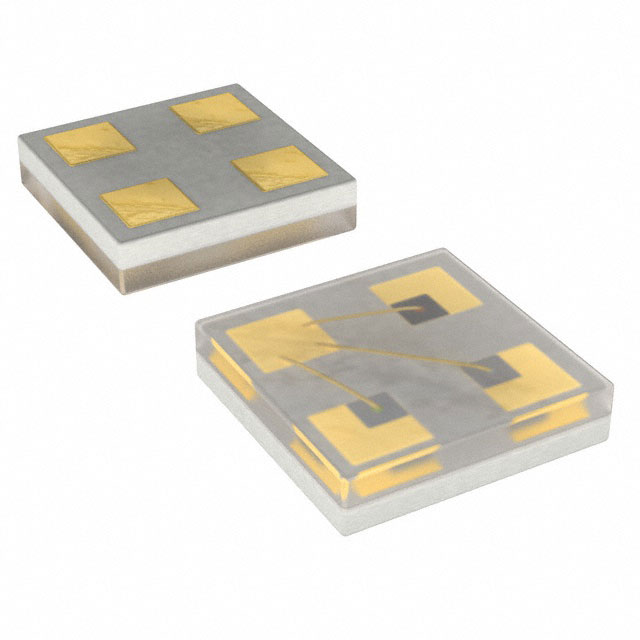

LED RGB CLEAR 4SMD
| Part | Package / Case | Height (Max) [z] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Lens Color | Wavelength - Peak | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Lens Style | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Wavelength - Dominant | Viewing Angle [custom] | Viewing Angle [custom] | Viewing Angle [custom] | Lens Transparency | Mounting Type | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Size | Configuration | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 0404 (1010 Metric) | 0.25 mm | 5 mA | 5 mA | 5 mA | Colorless | 461nm Blue 518nm Green 632nm Red | 4-SMD | 1 mm | 1 mm | Square with Flat Top | 2 V | 2.9 V | 3 V | 467nm Blue 527nm Green 624nm Red | 130 ° | 150 ° | 150 ° | Clear | Surface Mount | 30 mcd | 80 mcd | 23 mcd | 1 mm | Common Anode | Blue Green Red |
