AWH 14G Series

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Insulation Color	Style	Insulation Height	Insulation Height	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Mounting Type	Shrouding	Current Rating (Amps)	Features	Number of Positions	Material Flammability Rating	Number of Rows [custom]	Contact Material	Termination	Connector Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Cable Termination	Row Spacing	Row Spacing	Pitch	Pitch	Contact Finish	Color	Wire Type	Contact Length - Mating	Contact Length - Mating

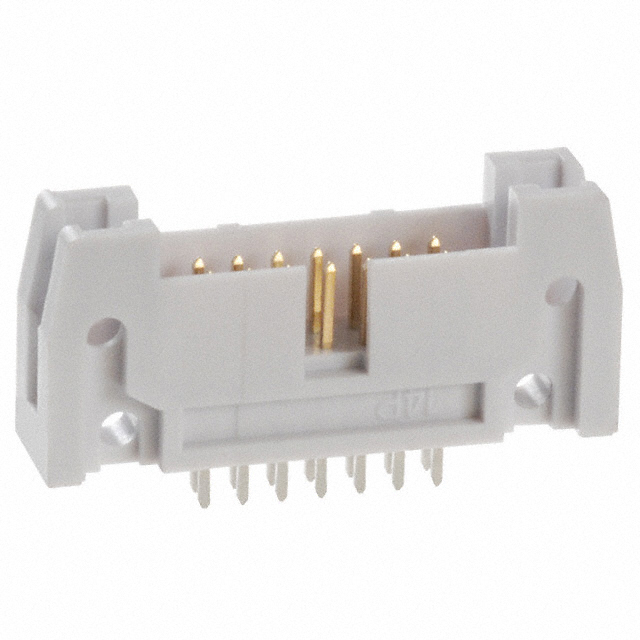

Assmann WSW Components AWH14G-0202-T-R	Gray	Board to Cable/Wire	17 mm	0.669 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	0.13 "	3.3 mm	Gold	Through Hole	Shrouded - 4 Wall	3 A	Keying Slot	14	UL94 V-0	2	Brass	Solder	Header	Square	-40 C	105 ░C	Male Pin	Tin	All	Flash	0.1 in	2.54 mm	Push-Pull
Assmann WSW Components AWH 14G-E202-IDC											Panel Mount			Feed Through	14		2			Header				Male Pin							IDC	2.54 mm	0.1 "	0.1 "	2.54 mm	Gold	Gray	Ribbon Cable
Assmann WSW Components AWH 14G-E232-IDC											Panel Mount			Feed Through	14		2			Header				Male Pin						Latch Lock/Eject Hooks Long	IDC	2.54 mm	0.1 "	0.1 "	2.54 mm	Gold	Gray	Ribbon Cable

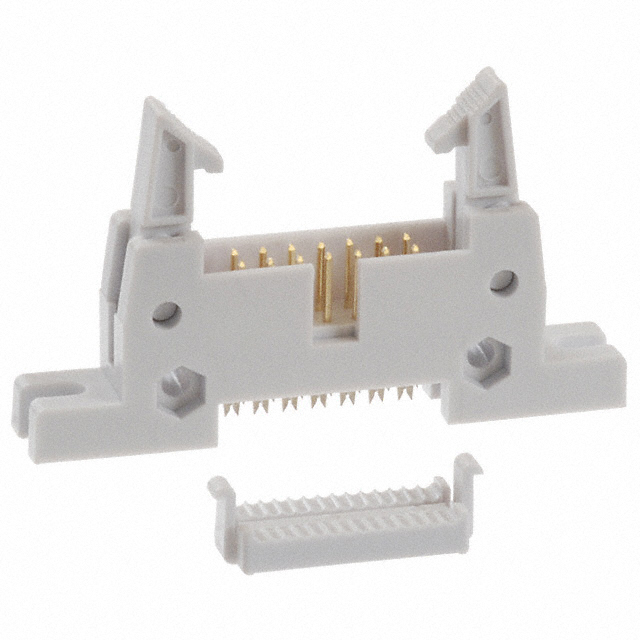

Assmann WSW Components AWH14G-E232-IDC-R											Panel Mount			Feed Through	14		2			Header				Male Pin						Latch Lock/Eject Hooks Long	IDC	2.54 mm	0.1 "	0.1 "	2.54 mm	Gold	Gray	Ribbon Cable

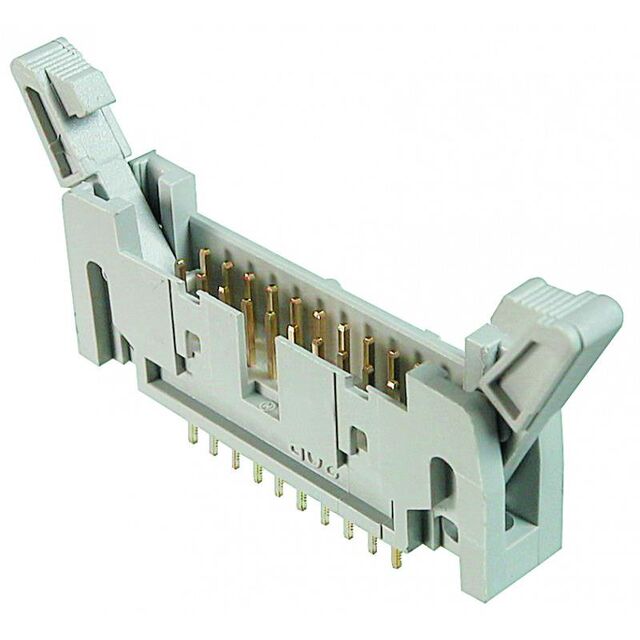

Assmann WSW Components AWH 14G-0522-T	Gray	Board to Cable/Wire	23.2 mm	0.913 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 "	2.54 mm	0.1 in	2.54 mm		Through Hole	Shrouded - 4 Wall	3 A	Polarizing Key	14	UL94 V-0	2	Brass	Solder	Header	Square	-40 C	105 ░C	Male Pin	Tin	All		0.1 in	2.54 mm	Latch Lock/Eject Hooks									6 mm	0.236 in
