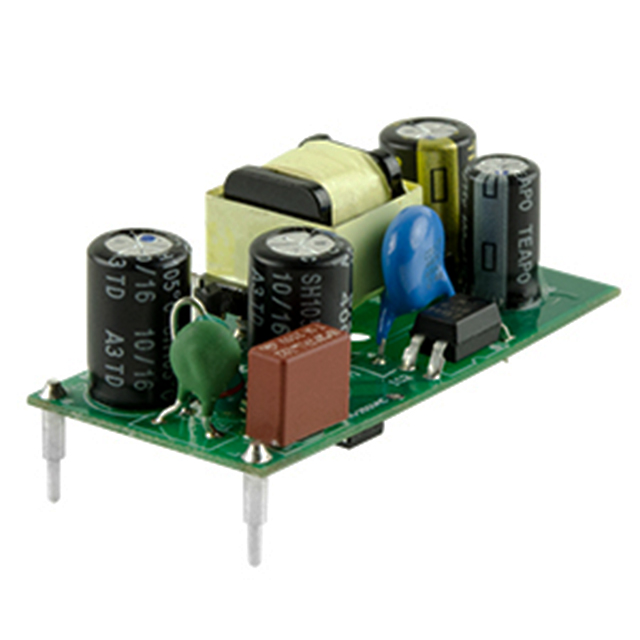

VOF-10B Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 15V 10W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Features	Mounting Type	Number of Outputs	Power (Watts)	Voltage - Output 1	Efficiency	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Line Regulation	Type	Load Regulation	Standard Number	Approval Agency	Line Regulation	Voltage - Input [Min]	Voltage - Input [Max]
CUI Inc. VOF-10B-S15	20.5 mm	0.81 in	0.92 "	48.6 mm	23.3 mm	1.91 in	700 mA	Universal Input	Through Hole	1	10 W	15 V	82.49 %	ITE (Commercial)	4-DIP Module	-25 °C	70 °C	Ý0.5%	Open Frame	3 %	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL
CUI Inc. VOF-10B-S9	20.5 mm	0.81 in	0.92 "	48.6 mm	23.3 mm	1.91 in		Universal Input	Through Hole	1	10 W	9 V	82.14 %	ITE (Commercial)	4-DIP Module	-25 °C	70 °C		Open Frame	3 %	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL	0.5 %
CUI Inc. VOF-10B-S5	20.5 mm	0.81 in	0.92 "	48.6 mm	23.3 mm	1.91 in	2 A	Universal Input	Through Hole	1	10 W	5 V	79 %	ITE (Commercial)	4-DIP Module	-25 °C	70 °C		Open Frame	3 %	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL	0.5 %
CUI Inc. VOF-10B-S24	20.5 mm	0.81 in	0.92 "	48.6 mm	23.3 mm	1.91 in	450 mA	Universal Input	Through Hole	1	10 W	24 V	82.49 %	ITE (Commercial)	4-DIP Module	-25 °C	70 °C		Open Frame	3 %	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL	0.5 %	85 VAC 120 VDC	264 VAC 370 VDC
CUI Inc. VOF-10B-S12	20.5 mm	0.81 in	0.92 "	48.6 mm	23.3 mm	1.91 in	850 mA	Universal Input	Through Hole	1	10 W	12 V	82.32 %	ITE (Commercial)	4-DIP Module	-25 °C	70 °C	Ý0.5%	Open Frame	3 %	60950-1 61000-3-2 61000-3-3 62368-1	CB Scheme EN FCC IEC UL		85 VAC 120 VDC	264 VAC 370 VDC
