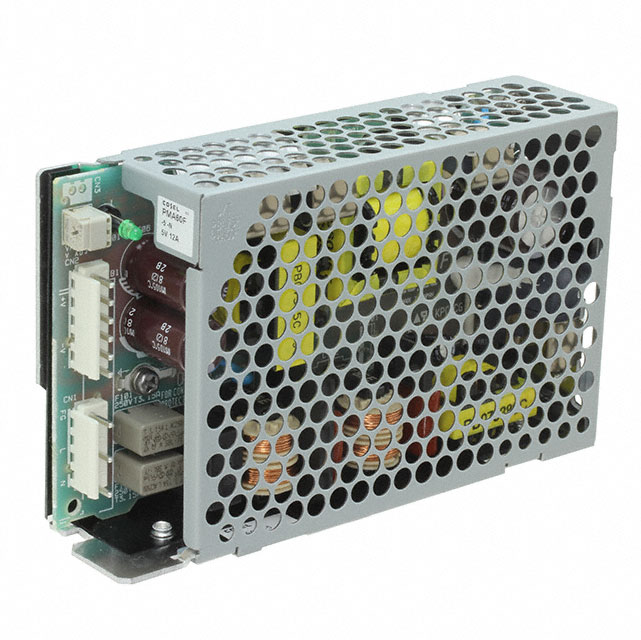

PMA60F Series

Catalog

AC/DC CONVERTER 5V

Part	Efficiency	Voltage - Output 1	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Number of Outputs	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Type	Mounting Type
Cosel USA, Inc. PMA60F-5-T	83 %	5 V	CE cURus TUV	70 °C	-10 °C	12 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
Cosel USA, Inc. PMA60F-12		12 V	CE cURus TUV	70 °C	-10 °C	5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
Cosel USA, Inc. PMA60F-12-J1		12 V	CE cURus TUV	70 °C	-10 °C	5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
Cosel USA, Inc. PMA60F-3R3-J1	78 %	3.3 V	CE cURus TUV	70 °C	-10 °C	12 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
Cosel USA, Inc. PMA60F-12-T1N		12 V	CE cURus TUV	70 °C	-10 °C	5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Enclosed	Chassis Mount
Cosel USA, Inc. PMA60F-24-N	83 %	24 V	CE cURus TUV	70 °C	-10 °C	2.5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Enclosed	Chassis Mount
Cosel USA, Inc. PMA60F-24-T1N	83 %	24 V	CE cURus TUV	70 °C	-10 °C	2.5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Enclosed	Chassis Mount
Cosel USA, Inc. PMA60F-5-T1	83 %	5 V	CE cURus TUV	70 °C	-10 °C	12 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
Cosel USA, Inc. PMA60F-24-J1	83 %	24 V	CE cURus TUV	70 °C	-10 °C	2.5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
Cosel USA, Inc. PMA60F-24	83 %	24 V	CE cURus TUV	70 °C	-10 °C	2.5 A	1	2000 V	3.23 in	5.31 in	1.26 in	32 mm	82 mm	134.9 mm	Medical	Open Frame	Chassis Mount
