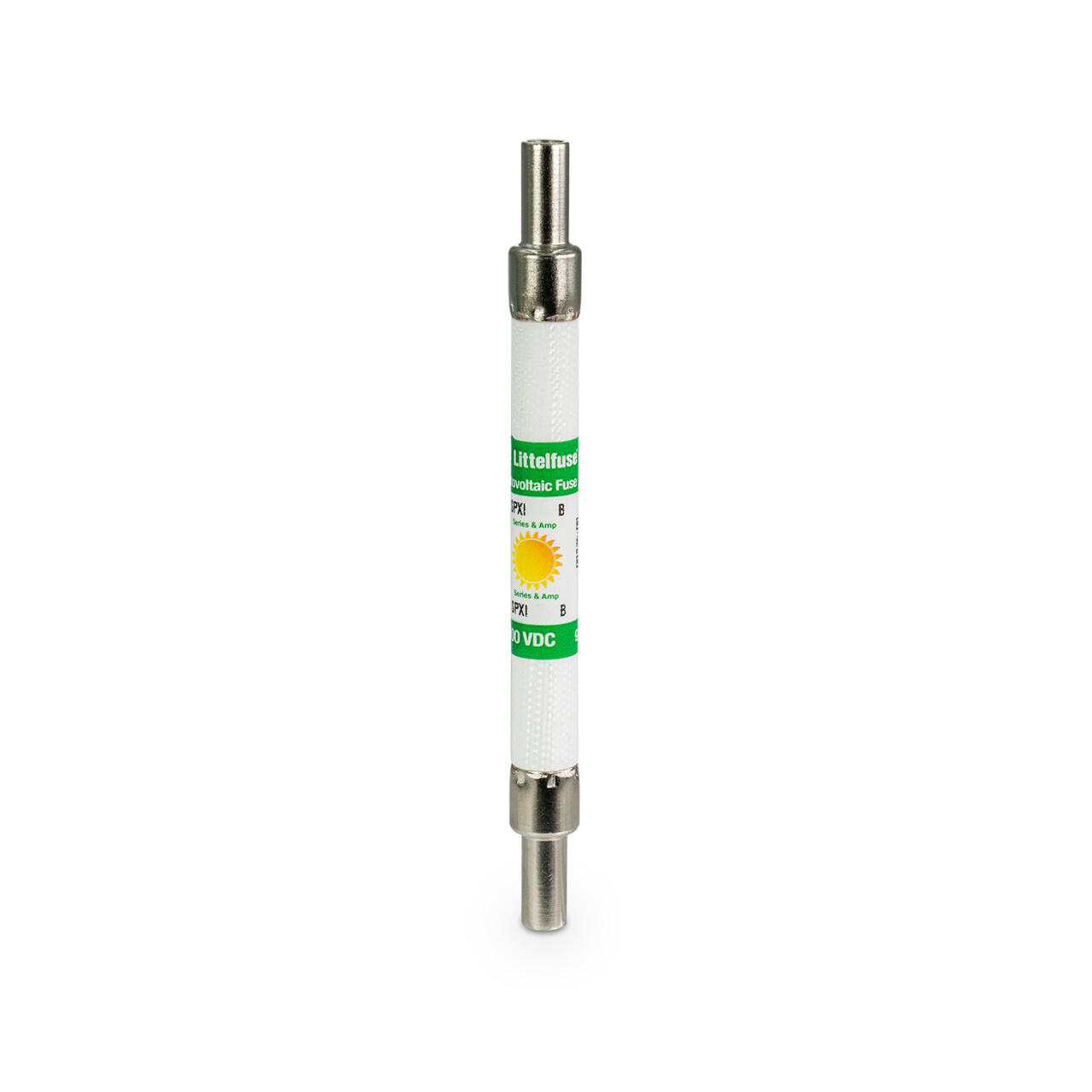

SPXI005-B Series

1500 VDC 5A INLINE MIDGET FUSE 8AWG

Catalog

1500 VDC 5A INLINE MIDGET FUSE 8AWG

Part	Melting I²t	DC Cold Resistance	Package / Case	Approval Agency	Mounting Type	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Response Time	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Fuse Type	Size / Dimension [x]
LITTELFUSE SPXI005.TXB	48	0.076 Ohms	Cartridge Double Ended Inline	CE gPV UL UR	Free Hanging (In-Line)	1.5 kV	30 kA	5 A	Fast Blow	Solar (Photovoltaic)	4.49 "	114.05 mm	0.406 "	10.31 mm	Cartridge
LITTELFUSE SPXI005.LXB			Cartridge Double Ended Inline	CE gPV UL UR	Free Hanging (In-Line)	1.5 kV	30 kA	5 A	Fast Blow	Solar (Photovoltaic)	4.333 in		0.406 "	10.31 mm	Cartridge	110.06 mm

Catalog

1500 VDC 5A INLINE MIDGET FUSE 8AWG

Description

The Littelfuse SPXI solar fuse is designed to integrate into an in-line assembly within a wire harness. The fuse provides photovoltaic (PV) protection that meets UL 248-19 for photovoltaic applications. The SPXI can be electrically insulated by either overmolding or using heat-shrink.
