R60II Series

Manufacturer: KEMET

Catalog

FILM CAPACITOR, AEC-Q200 R60 SERIES, 0.1 UF, 5%, PET (POLYESTER), 250 V ROHS COMPLIANT: YES

Part	Capacitance	Lead Spacing	Lead Spacing	Voltage Rating - AC	Dielectric Material	Package / Case	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Voltage Rating - DC	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET R60II31005030J	100000 pF	15 mm	0.591 in	160 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200	11.1 mm	0.437 in	Through Hole	250 V	5 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in	5 mm	18 mm	0.197 "
KEMET R60II36805030K	0.68 µF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200			Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in		18 mm	0.295 in	7.5 mm
KEMET R60II31004030K	100000 pF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200	11.1 mm	0.437 in	Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in	5 mm	18 mm	0.197 "
KEMET R60II36804030K	0.68 µF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200			Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in		18 mm	0.295 in	7.5 mm
KEMET R60II32205030K	0.22 µF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200	11.1 mm	0.437 in	Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in	5 mm	18 mm	0.197 "
KEMET R60II31005030K	100000 pF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200	11.1 mm	0.437 in	Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in	5 mm	18 mm	0.197 "
KEMET R60II4100AA30J	1 µF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200	14.6 mm		Through Hole	250 V	5 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in		18 mm	0.335 in	8.5 mm	0.575 in
KEMET R60II32204030K	0.22 µF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200	11.1 mm	0.437 in	Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in	5 mm	18 mm	0.197 "
KEMET R60II34705030J	0.47 µF	15 mm	0.591 in	160 V	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200		0.476 "	Through Hole	250 V	5 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in		18 mm	0.236 "	6 mm		12.1 mm

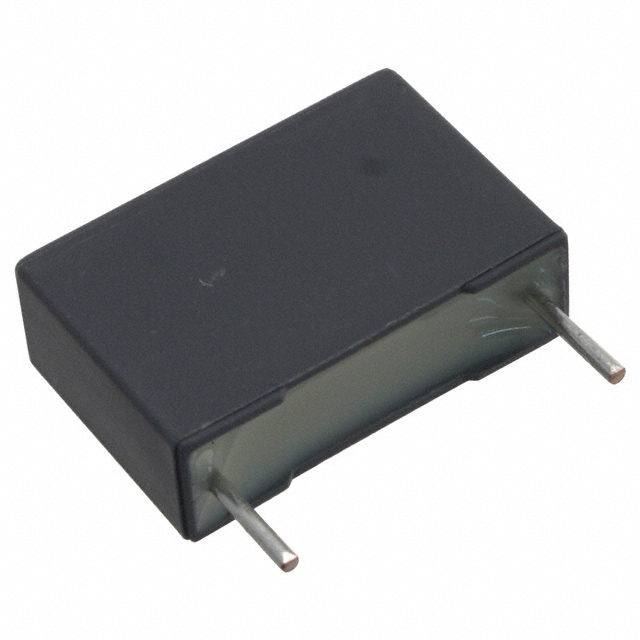

KEMET R60II3470AA30K	0.47 µF	15 mm	0.591 in	160 V	Metallized Polyester Polyethylene Terephthalate (PET)	Radial	AEC-Q200		0.476 "	Through Hole	250 V	10 %	-55 C	105 ░C	PC Pins	Automotive	0.709 in		18 mm	0.236 "	6 mm		12.1 mm
