ECJ-2FF Series

Catalog

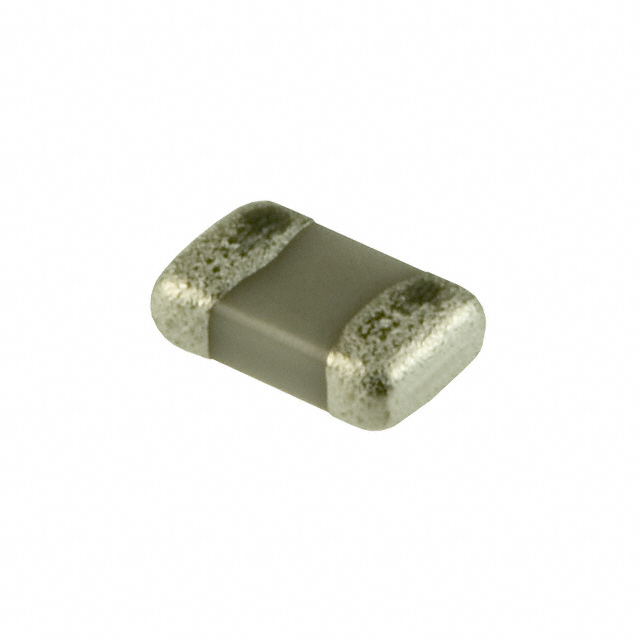

CAP CER 1UF 50V Y5V 0805

Part	Capacitance	Temperature Coefficient	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Mounting Type	Tolerance [Max]	Tolerance [Min]	Package / Case	Applications
Panasonic Electronic Components ECJ-2FF1H105Z	1 µF	Y5V (F)	0.055 in	1.4 mm	85 °C	-30 ░C	2 mm	1.25 mm	0.049 "	0.079 in	50 VDC	MLCC Surface Mount	80 %	-20 %	0805	General Purpose
Panasonic Electronic Components ECJ-2FF1C225Z	2.2 µF	Y5V (F)	0.055 in	1.4 mm	85 °C	-30 ░C	2 mm	1.25 mm	0.049 "	0.079 in	16 V	MLCC Surface Mount	80 %	-20 %	0805	General Purpose
Panasonic Electronic Components ECJ-2FF1A475Z	4.7 µF	Y5V (F)	0.055 in	1.4 mm	85 °C	-30 ░C	2 mm	1.25 mm	0.049 "	0.079 in	10 V	MLCC Surface Mount	80 %	-20 %	0805	General Purpose
Panasonic Electronic Components ECJ-2FF1A106Z	10 µF	Y5V (F)	0.055 in	1.4 mm	85 °C	-30 ░C	2 mm	1.25 mm	0.049 "	0.079 in	10 V	MLCC Surface Mount	80 %	-20 %	0805	General Purpose
