LM36010 Series

LM36010 Synchronous Boost LED flash driver

Catalog

LM36010 Synchronous Boost LED flash driver

Part	Applications	Number of Outputs	Current - Output / Channel	Voltage - Supply (Max)	Topology	Mounting Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Internal Switch(s)	Voltage - Supply (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency	Type	Dimming	Supplied Contents	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]
Texas Instruments LM36010YKBR	Mobile Communications	1	1.5 A	5.5 V	Step-Up (Boost)	Surface Mount	8-DSBGA	1.51	0.8		2.5 V	85 °C	-40 °C	8-XFBGA DSBGA	4 MHz	DC DC Regulator

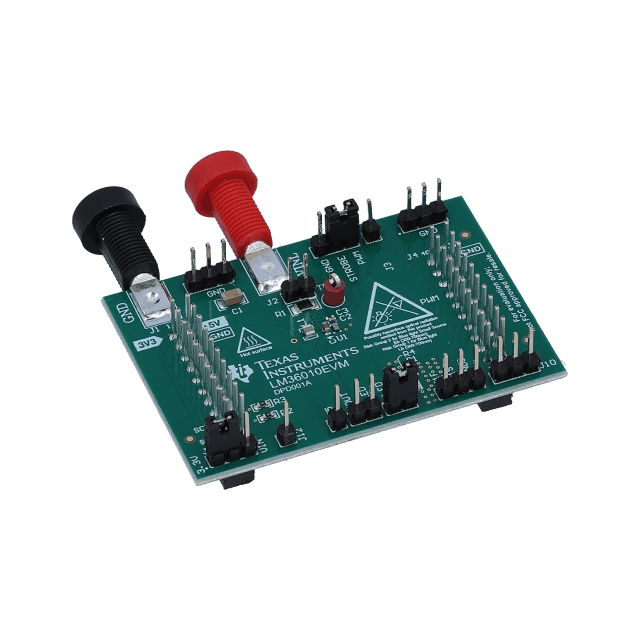

Texas Instruments LM36010EVM			1.5 A															Board(s)	LM36010	Non-Isolated	1	2.5 V	5.5 V

Catalog

LM36010 Synchronous Boost LED flash driver

Key Features

• Accurate and Programmable LED CurrentsFlash / IR Currents Ranging from 11 mA up to 1.5 A (128 Levels)Torch Currents Ranging from 2.4 mA up to 376 mA (128 Levels)Flash Time-Out up to 1.6 SecondsOptimized Flash LED Current During Low Battery Conditions (IVFM)Grounded Cathode LED Operation for Improved Thermal ManagementSmall Total Solution Size: < 7 mm2Hardware Strobe Enable (STROBE)Input Voltage Range from 2.5 V to 5.5 V400-kHz I2C-Compatible InterfaceI2C Address = 0x64Accurate and Programmable LED CurrentsFlash / IR Currents Ranging from 11 mA up to 1.5 A (128 Levels)Torch Currents Ranging from 2.4 mA up to 376 mA (128 Levels)Flash Time-Out up to 1.6 SecondsOptimized Flash LED Current During Low Battery Conditions (IVFM)Grounded Cathode LED Operation for Improved Thermal ManagementSmall Total Solution Size: < 7 mm2Hardware Strobe Enable (STROBE)Input Voltage Range from 2.5 V to 5.5 V400-kHz I2C-Compatible InterfaceI2C Address = 0x64

Description

The LM36010 is an ultra-small LED flash driver that provides a high level of adjustability. With a total solution size of 7 mm2, it can produce up to 1.5 A of LED flash current or up to 376 mA of torch current. The device utilizes a 2-MHz or 4-MHz fixed-frequency, synchronous boost converter to power the 1.5-A constant current LED source. An adaptive regulation method ensures the current source remains in regulation and maximizes efficiency as it controls the current from 11 mA up to 1.5 A in flash mode or from 2.4 mA up to 376 mA in torch mode. Features of the LM36010 are controlled via an I2C-compatible interface. These features include: hardware flash (STROBE) and 128 programmable currents for both flash and movie mode (torch). The 2-MHz or 4-MHz switching frequency, overvoltage protection (OVP), and adjustable current limit allow for the use of tiny, low-profile inductors and ceramic capacitors. The device operates over a –40°C to +85°C ambient temperature range. The LM36010 is an ultra-small LED flash driver that provides a high level of adjustability. With a total solution size of 7 mm2, it can produce up to 1.5 A of LED flash current or up to 376 mA of torch current. The device utilizes a 2-MHz or 4-MHz fixed-frequency, synchronous boost converter to power the 1.5-A constant current LED source. An adaptive regulation method ensures the current source remains in regulation and maximizes efficiency as it controls the current from 11 mA up to 1.5 A in flash mode or from 2.4 mA up to 376 mA in torch mode. Features of the LM36010 are controlled via an I2C-compatible interface. These features include: hardware flash (STROBE) and 128 programmable currents for both flash and movie mode (torch). The 2-MHz or 4-MHz switching frequency, overvoltage protection (OVP), and adjustable current limit allow for the use of tiny, low-profile inductors and ceramic capacitors. The device operates over a –40°C to +85°C ambient temperature range.
