19C200 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

INDUSTRIAL PRESSURE SENSORS 0 TO 200 PSI, 15VDC SHOCK 100 G FOR 11MS

Part	Package / Case	Features	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Termination Style	Accuracy	Output [Max]	Output	Voltage - Supply	Port Size	Port Size	Port Size	Pressure Type	Applications	Maximum Pressure
Honeywell Sensing and Productivity Solutions 19C200PA2L	Cylinder	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	No Port	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV
Honeywell Sensing and Productivity Solutions 19C200PA7K	Cylinder Threaded	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	Threaded	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC	BSPP Male	0.25 in	0.25 "
Honeywell Sensing and Productivity Solutions 19C200PG4K	Cylinder Threaded	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	Threaded	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC	Male NPT	3.18 mm	0.125 in	Vented Gauge	Board Mount
Honeywell Sensing and Productivity Solutions 19C200PG6K	Cylinder Threaded	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	Threaded	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC	Male		0.4375 in 11.11 mm	Vented Gauge
Honeywell Sensing and Productivity Solutions 19C200PV4K	Cylinder Threaded	Temperature Compensated	-1378.95 kPa	-200 PSI	125 °C	-40 C	Threaded		-600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC	Male NPT	3.18 mm	0.125 in	Vacuum		-4136.85 kPa
Honeywell Sensing and Productivity Solutions 19C200PA5K	Cylinder Threaded	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	Threaded	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC	Male NPT	0.25 in	0.25 "

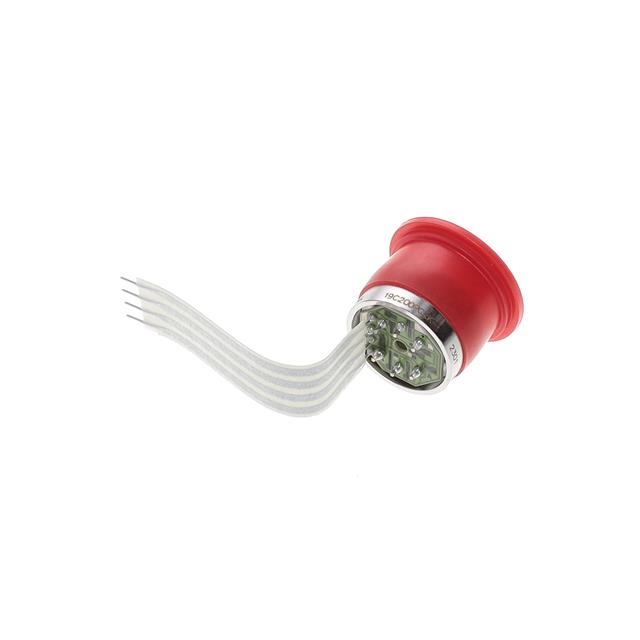

Honeywell Sensing and Productivity Solutions 19C200PG2K	Cylinder	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	No Port	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC				Vented Gauge
Honeywell Sensing and Productivity Solutions 19C200PG5L	Cylinder Threaded	Temperature Compensated	1378.95 kPa	200 PSI	125 °C	-40 C	Threaded	4136.85 kPa	600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV			Male NPT	0.25 in	0.25 "	Vented Gauge
Honeywell Sensing and Productivity Solutions 19C200PV5L	Cylinder Threaded	Temperature Compensated	-1378.95 kPa	-200 PSI	125 °C	-40 C	Threaded		-600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV			Male NPT	0.25 in	0.25 "	Vacuum		-4136.85 kPa
Honeywell Sensing and Productivity Solutions 19C200PV1K	Cylinder	Temperature Compensated	-1378.95 kPa	-200 PSI	125 °C	-40 C	No Port		-600 PSI	Analog Voltage	Flex Cable	0.25 %	100 mV	10 V	15 VDC	Cell w/Body O-Ring			Vacuum		-4136.85 kPa
