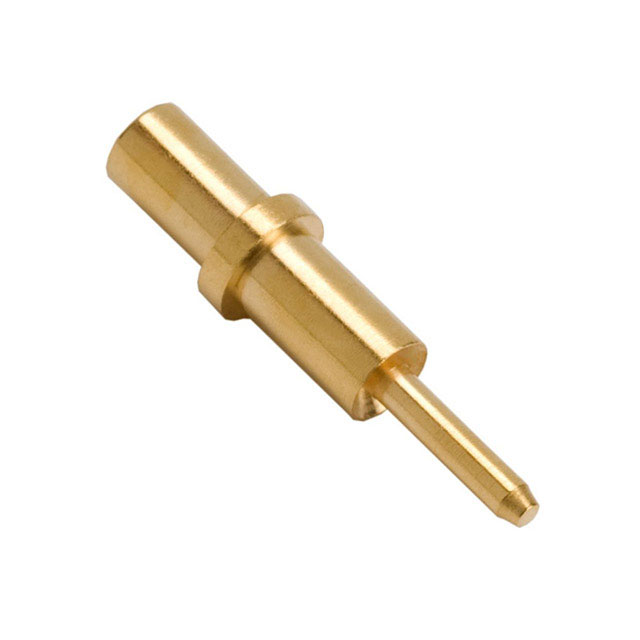

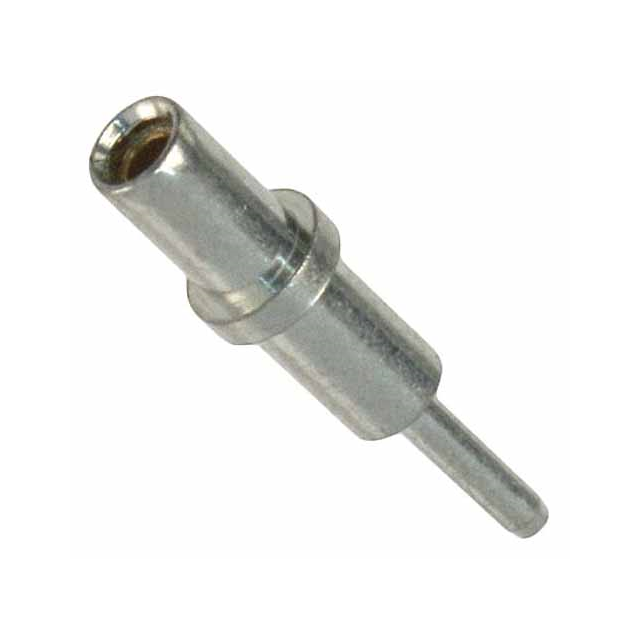

H3194 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONTACT JACK ASSY ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Force [Max] | Insertion Force [Min] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Contact Finish | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall | Length - Overall | Socket Depth | Socket Depth | Tail Type | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -55 C | 125 °C | 9 N | 3 N | Solder | 0.125 in | 3.18 mm | 4 µm | 157.5 µin | 2.46 mm | 0.097 in | 0.093 in | 2.37 mm | Tin | 1.02 mm | 0.04 in | 0.526 in | 13.35 mm | 4.28 mm | 0.169 " | Standard Tail | Beryllium Copper | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " |
